滚针轴承(摘自JB/T 7918-1997)

常用滚动轴承的基本尺寸与数据分页导航

本页导航 广告链接

滚针轴承(摘自JB/T 7918-1997)

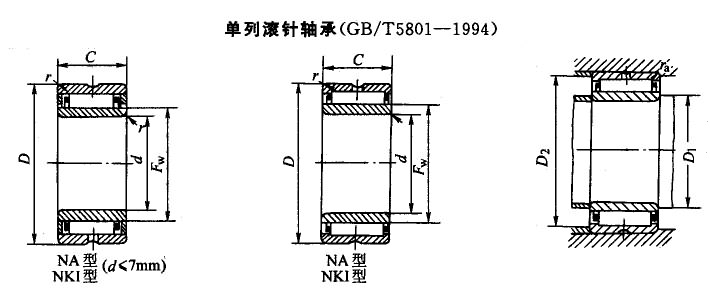

单列滚针轴承(摘自GB/T5801-1994)

轴承代号
NA型、NKI型
NKI 5/12
NKI 5/16
NKI 6/12
NKI 6/16
NKI 7/12
NKI 7/16
NKI 9/12
NKI 9/16
NA 4900
NKI 10/16
NKI 10/20
NA 4901
NKI 12/16
NKI 12/20
NA 6901
NKI 15/16
NKI 15/20
NA 4902
NA 6902
NKI 17/16
NKI 17/20
NA 4903
NA 6903
NKI 20/16
NKI 20/20
NA 4904
NA 6904
NKI 22/16
NKI 22/20

基本尺寸/mm			安装尺寸/mm			其他尺寸/mm		基本额定载荷/kN		极限转速/(r/min)		重量/g
d	D	C	D1(min)	D2(max)	ra(max)	Fw	r(min)	Cr	C0r	脂	油	W≈
5	15	12	7	13	0.3	8	0.3	3.7	3.7	19000	28000	12.3
5	15	16	7	13	0.3	8	0.3	4.9	5.3	19000	28000	16.4
6	16	12	8	14	0.3	9	0.3	4.2	4.5	18000	26000	13.5
6	16	16	8	14	0.3	9	0.3	5.6	6.5	18000	26000	18.1
7	17	12	9	15	0.3	10	0.3	4.4	4.9	16000	24000	14.8
7	17	16	9	15	0.3	10	0.3	5.9	7.2	16000	24000	19.8
9	19	12	11	17	0.3	12	0.3	6.5	7.1	15000	22000	16.9
9	19	16	11	17	0.3	12	0.3	9.1	11	15000	22000	22.4
10	22	13	12	20	0.3	14	0.3	8.6	9.2	15000	22000	24.3
10	22	16	12	20	0.3	14	0.3	11	12.5	15000	22000	30.2
10	22	20	12	20	0.3	14	0.3	14	17	15000	22000	37.8
12	24	13	14	22	0.3	16	0.3	9.6	10.8	13000	19000	27.6
12	24	16	14	22	0.3	16	0.3	11.5	14	13000	19000	33.8
12	24	20	14	22	0.3	16	0.3	14.5	18.8	13000	19000	42.2
12	24	22	14	22	0.3	16	0.3	16.2	21.5	13000	19000	46.9
15	27	16	17	25	0.3	19	0.3	13.2	17.5	10000	16000	39.7
15	27	20	17	25	0.3	19	0.3	16.8	23.5	10000	16000	49.7
15	28	13	17	26	0.3	20	0.3	10.2	12.8	10000	16000	35.9
15	28	23	17	26	0.3	20	0.3	17.5	25.2	10000	16000	63.7
17	29	16	19	27	0.3	21	0.3	13.8	18.8	9500	15000	43.3
17	29	20	19	27	0.3	21	0.3	17.5	25.5	9500	15000	54.3
17	30	13	19	28	0.3	22	0.3	11.2	14.5	9500	15000	39.4
17	30	23	19	28	0.3	22	0.3	19	28.8	9500	15000	69.9
20	32	16	22	30	0.3	24	0.3	15.2	22.2	9000	14000	49.3
20	32	20	22	30	0.3	24	0.3	19.2	30.2	9000	14000	61.7
20	37	17	22	35	0.3	25	0.3	21.2	25.2	9000	14000	79.9
20	37	30	22	35	0.3	25	0.3	35.2	48.5	9000	14000	141
22	34	16	24	32	0.3	26	0.3	15.5	23.5	9000	13000	52.9
22	34	20	24	32	0.3	26	0.3	19.8	32	9000	13000	66.1

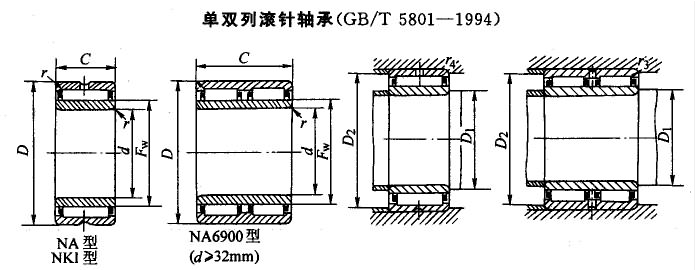

单双列滚针轴承(摘自GB/T5801-1994)

轴承代号
NA型、NKI型

NA 49/22

NA 69/22

NKI 25/20

NKI 25/30

NA4905

NA 6905

NKI 28/20

NKI 28/30

NA 49/28

NA 69/28

NKI 30/20

NKI 30/30

NA 4906

NA 6906

NKI 32/20

NKI 32/30

NA 49/32

NA 69/32

NKI 35/20

NKI 35/30

NA 4907

NA 6907

NKI 38/20

NKI 38/30

NKI 40/20

NKI 40/30

NA 4908

NA 6908

NKI 42/20

NKI 42/30

NKI 45/25

NKI 45/35

NA 4909

NA6909

NKI 50/25

NKI 50/35

NA 4910

NA 6910

NKI 55/25

NKI 55/35

NA 4911

NA6911

NKI 60/25

NKI 60/35

NA 4912

NA 6912

NA 4913

NKI 65/25

NKI 65/35

NA6913

NKI 70/25

NKI 70/35

NA 4914

NA 6914

NKI 75/25

NA 4915

NKI 75/35

NA 6915

NKI 80/25

NA 4916

NKI 80/35

NA6916

NKI 85/26

NKI 85/36

NA 4917

NA 6917

NKI 90/26

NKI 90/36

NA4918

NA 6918

NKI 95/26

NKI 95/36

NA 4919

NA 6919

NKI 100/30

NKI 100/40

NA 4920

NA 6920

NA 4822

NA 4922

NA4824

NA 4924

NA 4826

NA 4926

NA 4828

NA 4928

NA 4830

NA 4832

NA 4834

NA 4836

NA 4838

NA 4840

NA 4844

NA 4848

NA 4852

NA 4856

NA 4860

NA 4864

NA 4868

NA 4872

基本尺寸/mm			安装尺寸/mm			其他尺寸/mm		基本额定载荷/kN		极限转速/(r/min)		重量/g
d	D	C	D1(min)	D2(max)	ra(max)	Fw	r(min)	Cr	C0r	脂	油	W≈
22	39	17	24	37	0.3	28	0.3	23.2	29.2	9000	13000	85.4
22	39	30	24	37	0.3	28	0.3	38.5	56.2	9000	13000	151
25	38	20	27	36	0.3	29	0.3	22.2	23	8000	12000	78.6
25	38	30	27	36	0.3	29	0.3	33.5	58	8000	12000	119
25	42	17	27	40	0.3	30	0.3	24	31.2	8000	12000	94.7
25	42	30	27	40	0.3	30	0.3	40	60.2	8000	12000	167
28	42	20	30	40	0.3	32	0.3	23.5	37.8	7500	11000	96.4
28	42	30	30	40	0.3	32	0.3	35.5	64.2	7500	11000	145
28	45	17	30	43	0.3	32	0.3	24.8	33.2	7500	11000	104
28	45	30	30	43	0.3	32	0.3	41.5	64.2	7500	11000	183
30	45	20	32	43	0.3	35	0.3	24.8	41.5	7000	10000	112
30	45	30	32	43	0.3	35	0.3	37.5	70.5	7000	10000	169
30	47	17	32	45	0.3	35	0.3	25.5	35.5	7000	10000	108
30	47	30	32	45	0.3	35	0.3	42.8	68.5	7000	10000	191
32	47	20	34	45	0.3	37	0.3	25.2	43.2	6300	9000	118
32	47	30	34	45	0.3	37	0.3	38.2	74	6300	9000	178
32	52	20	36	48	0.6	40	0.6	31.5	48.5	6300	9000	168
32	52	36	36	48	0.6	40	0.6	48	83.2	6300	9000	－
35	50	20	37	48	0.3	40	0.3	26.5	47.2	6300	9000	127
35	50	30	37	48	0.3	40	0.3	40	80.2	6300	9000	191
35	55	20	39	51	0.6	42	0.6	32.5	51	6000	8500	181
35	55	36	39	51	0.6	42	0.6	49.5	87.2	6000	8500	－
38	53	20	40	51	0.3	43	0.3	27.5	50.8	5600	8000	136
38	53	30	40	51	0.3	43	0.3	41.5	86.5	5600	8000	205
40	55	20	42	53	0.3	45	0.3	28	52.8	5300	7500	142
40	55	30	42	53	0.3	45	0.3	42.5	89.8	5300	7500	214
40	62	22	44	58	0.6	48	0.6	43.5	66.2	5000	7000	240
40	62	40	44	58	0.6	48	0.6	62.8	108	5000	7000	－
42	57	20	44	55	0.3	47	0.3	29.2	56.5	5000	7000	148
42	57	30	44	55	0.3	47	0.3	44.2	96.2	5000	7000	223
45	62	25	49	58	0.6	50	0.6	38.8	74.2	4800	6700	225
45	62	35	49	58	0.6	50	0.6	51.8	108	4800	6700	314
45	68	22	49	64	0.6	52	0.6	46	73	4800	6700	284
45	58	40	49	64	0.6	52	0.6	67.2	118	4800	6700	－
50	68	25	54	64	0.6	55	0.6	41	82.5	4500	6300	267
50	68	35	54	64	0.6	55	0.6	54.8	120	4500	6300	373
50	72	22	54	68	0.6	58	0.6	48.2	80	4500	6300	287
50	72	40	54	68	0.6	58	0.6	70.2	128	4500	6300	－
55	72	25	59	68	0.6	60	0.6	43.2	90.8	4000	5600	267
55	72	35	59	68	0.6	60	0.6	57.5	132	4000	5600	373
55	80	25	60	75	1	63	1	58.5	99	4000	5600	416
55	80	45	60	75	1	63	1	87.8	168	4000	5600	－
60	82	25	64	78	0.6	68	0.6	45.5	92	3800	5300	398
60	82	35	64	78	0.6	68	0.6	66.5	150	3800	5300	559
60	85	25	65	80	1	68	1	61.2	108	3800	5300	448
60	85	45	65	80	1	68	1	90.8	182	3800	5300	－
65	90	25	70	85	1	72	1	62.2	112	3600	5000	479
65	90	25	70	85	1	73	1	54.2	100	3600	5000	483
65	90	35	70	85	1	73	1	79.5	165	3600	5000	680
65	90	45	70	85	1	72	1	93.2	188	3600	5000	－
70	95	25	75	90	1	80	1	57.2	112	3200	4500	512
70	95	35	75	90	1	80	1	83.8	182	3200	4500	720
70	100	30	75	95	1	80	1	84	152	3200	4500	762
70	100	54	75	95	1	80	1	130	260	3200	4500	－
75	105	25	80	100	1	85	1	69.2	120	3000	4300	669
75	105	30	80	100	1	85	1	85.5	158	3000	4300	805
75	105	35	80	100	1	85	1	100	195	3000	4300	939
75	105	54	80	100	1	85	1	130	270	3000	4300	－
80	110	25	85	105	1	90	1	72.2	130	2800	4000	708
80	110	30	85	105	1	90	1	89	170	2800	4000	852
80	110	35	85	105	1	90	1	105	210	2800	4000	993
80	110	54	85	105	1	90	1	135	292	2800	4000	－
85	115	26	90	110	1	95	1	76.8	142	2400	3600	774
85	115	36	90	110	1	95	1	110	225	2400	3600	1070
85	120	35	91.5	113.5	1	100	1.1	112	235	2400	3600	1280
85	120	63	91.5	113.5	1	100	1.1	155	365	2400	3600	－
90	120	26	95	115	1	100	1	79.8	152	2400	3600	814
90	120	36	95	115	1	100	1	115	242	2400	3600	1130
90	125	35	96.5	118.5	1	105	1.1	115	250	2200	3400	1340
90	125	63	96.5	118.5	1	105	1.1	165	388	2200	3400	－
95	125	26	100	120	1	105	1	80.8	158	2200	3400	851
95	125	36	100	120	1	105	1	115	250	2200	3400	1180
95	130	35	101.5	123.5	1	110	1.1	120	265	2000	3200	1410
95	130	63	101.5	123.5	1	110	1.1	172	412	2000	3200	－
100	130	30	106.5	123.5	1	110	1.1	98.2	205	2000	3200	1020
100	130	40	106.5	123.5	1	110	1.1	125	285	2000	3200	1370
100	140	40	106.5	133.5	1	115	1.1	130	270	2000	3200	1960
100	140	71	106.5	133.5	1	115	1.1	202	480	2000	3200	－
110	140	30	115	135	1	120	1	93	210	2000	3200	1130
110	150	40	116.5	143.5	1	125	1.1	138	295	1900	3000	2120
120	150	30	125	145	1	130	1	96.2	225	1900	3000	1220
120	165	45	126.5	158.5	1	135	1.1	180	382	1800	2800	2910
130	165	35	136.5	158.5	1	145	1.1	118	302	1700	2600	－
130	180	50	138	172	1.5	150	1.5	202	460	1600	2400	3960
140	175	35	146.5	168.5	1	155	1.1	122	320	1600	2400	1980
140	190	50	148	182	1.5	160	1.5	210	488	1500	2200	4220
150	190	40	156.5	183.5	1	165	1.1	152	395	1500	2200	2800
160	200	40	166.5	193.5	1	175	1.1	158	418	1500	2200	2970
170	215	45	176.5	208.5	1	185	1.1	192	520	1300	2000	4080
180	225	45	186.5	218.5	1	195	1.1	198	552	1200	1900	4290
190	240	50	198	232	1.5	210	1.5	230	688	1200	1800	5700
200	250	50	208	242	1.5	220	1.5	235	725	1100	1700	5970
220	270	50	228	262	1.5	240	1.5	245	785	950	1500	6500
240	300	60	249	291	2	265	2	352	1050	900	1400	10100
260	320	60	269	311	2	285	2	368	1130	800	1200	10800
280	350	69	289	341	2	305	2	445	1310	750	1100	15800
300	380	80	311	369	2.1	330	2.1	608	1700	750	1100	22200
320	400	80	331	389	2.1	350	2.1	630	1820	700	1000	23500
340	420	80	351	409	2.1	370	2.1	642	1900	670	950	24800
360	440	80	371	429	2.1	390	2.1	862	2010	630	900	26100

基本尺寸/mm			安装尺寸/mm			其他尺寸/mm		基本额定载荷/kN		极限转速/(r/min)		重量/g
d	D	C	D1(min)	D2(max)	ra(max)	Fw	r(min)	Cr	C0r	脂	油	W≈
22	39	17	24	37	0.3	28	0.3	23.2	29.2	9000	13000	85.4
22	39	30	24	37	0.3	28	0.3	38.5	56.2	9000	13000	151
25	38	20	27	36	0.3	29	0.3	22.2	23	8000	12000	78.6
25	38	30	27	36	0.3	29	0.3	33.5	58	8000	12000	119
25	42	17	27	40	0.3	30	0.3	24	31.2	8000	12000	94.7
25	42	30	27	40	0.3	30	0.3	40	60.2	8000	12000	167
28	42	20	30	40	0.3	32	0.3	23.5	37.8	7500	11000	96.4
28	42	30	30	40	0.3	32	0.3	35.5	64.2	7500	11000	145
28	45	17	30	43	0.3	32	0.3	24.8	33.2	7500	11000	104
28	45	30	30	43	0.3	32	0.3	41.5	64.2	7500	11000	183
30	45	20	32	43	0.3	35	0.3	24.8	41.5	7000	10000	112
30	45	30	32	43	0.3	35	0.3	37.5	70.5	7000	10000	169
30	47	17	32	45	0.3	35	0.3	25.5	35.5	7000	10000	108
30	47	30	32	45	0.3	35	0.3	42.8	68.5	7000	10000	191
32	47	20	34	45	0.3	37	0.3	25.2	43.2	6300	9000	118
32	47	30	34	45	0.3	37	0.3	38.2	74	6300	9000	178
32	52	20	36	48	0.6	40	0.6	31.5	48.5	6300	9000	168
32	52	36	36	48	0.6	40	0.6	48	83.2	6300	9000	－
35	50	20	37	48	0.3	40	0.3	26.5	47.2	6300	9000	127
35	50	30	37	48	0.3	40	0.3	40	80.2	6300	9000	191
35	55	20	39	51	0.6	42	0.6	32.5	51	6000	8500	181
35	55	36	39	51	0.6	42	0.6	49.5	87.2	6000	8500	－
38	53	20	40	51	0.3	43	0.3	27.5	50.8	5600	8000	136
38	53	30	40	51	0.3	43	0.3	41.5	86.5	5600	8000	205
40	55	20	42	53	0.3	45	0.3	28	52.8	5300	7500	142
40	55	30	42	53	0.3	45	0.3	42.5	89.8	5300	7500	214
40	62	22	44	58	0.6	48	0.6	43.5	66.2	5000	7000	240
40	62	40	44	58	0.6	48	0.6	62.8	108	5000	7000	－
42	57	20	44	55	0.3	47	0.3	29.2	56.5	5000	7000	148
42	57	30	44	55	0.3	47	0.3	44.2	96.2	5000	7000	223
45	62	25	49	58	0.6	50	0.6	38.8	74.2	4800	6700	225
45	62	35	49	58	0.6	50	0.6	51.8	108	4800	6700	314
45	68	22	49	64	0.6	52	0.6	46	73	4800	6700	284
45	58	40	49	64	0.6	52	0.6	67.2	118	4800	6700	－
50	68	25	54	64	0.6	55	0.6	41	82.5	4500	6300	267
50	68	35	54	64	0.6	55	0.6	54.8	120	4500	6300	373
50	72	22	54	68	0.6	58	0.6	48.2	80	4500	6300	287
50	72	40	54	68	0.6	58	0.6	70.2	128	4500	6300	－
55	72	25	59	68	0.6	60	0.6	43.2	90.8	4000	5600	267
55	72	35	59	68	0.6	60	0.6	57.5	132	4000	5600	373
55	80	25	60	75	1	63	1	58.5	99	4000	5600	416
55	80	45	60	75	1	63	1	87.8	168	4000	5600	－
60	82	25	64	78	0.6	68	0.6	45.5	92	3800	5300	398
60	82	35	64	78	0.6	68	0.6	66.5	150	3800	5300	559
60	85	25	65	80	1	68	1	61.2	108	3800	5300	448
60	85	45	65	80	1	68	1	90.8	182	3800	5300	－
65	90	25	70	85	1	72	1	62.2	112	3600	5000	479
65	90	25	70	85	1	73	1	54.2	100	3600	5000	483
65	90	35	70	85	1	73	1	79.5	165	3600	5000	680
65	90	45	70	85	1	72	1	93.2	188	3600	5000	－
70	95	25	75	90	1	80	1	57.2	112	3200	4500	512
70	95	35	75	90	1	80	1	83.8	182	3200	4500	720
70	100	30	75	95	1	80	1	84	152	3200	4500	762
70	100	54	75	95	1	80	1	130	260	3200	4500	－
75	105	25	80	100	1	85	1	69.2	120	3000	4300	669
75	105	30	80	100	1	85	1	85.5	158	3000	4300	805
75	105	35	80	100	1	85	1	100	195	3000	4300	939
75	105	54	80	100	1	85	1	130	270	3000	4300	－
80	110	25	85	105	1	90	1	72.2	130	2800	4000	708
80	110	30	85	105	1	90	1	89	170	2800	4000	852
80	110	35	85	105	1	90	1	105	210	2800	4000	993
80	110	54	85	105	1	90	1	135	292	2800	4000	－
85	115	26	90	110	1	95	1	76.8	142	2400	3600	774
85	115	36	90	110	1	95	1	110	225	2400	3600	1070
85	120	35	91.5	113.5	1	100	1.1	112	235	2400	3600	1280
85	120	63	91.5	113.5	1	100	1.1	155	365	2400	3600	－
90	120	26	95	115	1	100	1	79.8	152	2400	3600	814
90	120	36	95	115	1	100	1	115	242	2400	3600	1130
90	125	35	96.5	118.5	1	105	1.1	115	250	2200	3400	1340
90	125	63	96.5	118.5	1	105	1.1	165	388	2200	3400	－
95	125	26	100	120	1	105	1	80.8	158	2200	3400	851
95	125	36	100	120	1	105	1	115	250	2200	3400	1180
95	130	35	101.5	123.5	1	110	1.1	120	265	2000	3200	1410
95	130	63	101.5	123.5	1	110	1.1	172	412	2000	3200	－
100	130	30	106.5	123.5	1	110	1.1	98.2	205	2000	3200	1020
100	130	40	106.5	123.5	1	110	1.1	125	285	2000	3200	1370
100	140	40	106.5	133.5	1	115	1.1	130	270	2000	3200	1960
100	140	71	106.5	133.5	1	115	1.1	202	480	2000	3200	－
110	140	30	115	135	1	120	1	93	210	2000	3200	1130
110	150	40	116.5	143.5	1	125	1.1	138	295	1900	3000	2120
120	150	30	125	145	1	130	1	96.2	225	1900	3000	1220
120	165	45	126.5	158.5	1	135	1.1	180	382	1800	2800	2910
130	165	35	136.5	158.5	1	145	1.1	118	302	1700	2600	－
130	180	50	138	172	1.5	150	1.5	202	460	1600	2400	3960
140	175	35	146.5	168.5	1	155	1.1	122	320	1600	2400	1980
140	190	50	148	182	1.5	160	1.5	210	488	1500	2200	4220
150	190	40	156.5	183.5	1	165	1.1	152	395	1500	2200	2800
160	200	40	166.5	193.5	1	175	1.1	158	418	1500	2200	2970
170	215	45	176.5	208.5	1	185	1.1	192	520	1300	2000	4080
180	225	45	186.5	218.5	1	195	1.1	198	552	1200	1900	4290
190	240	50	198	232	1.5	210	1.5	230	688	1200	1800	5700
200	250	50	208	242	1.5	220	1.5	235	725	1100	1700	5970
220	270	50	228	262	1.5	240	1.5	245	785	950	1500	6500
240	300	60	249	291	2	265	2	352	1050	900	1400	10100
260	320	60	269	311	2	285	2	368	1130	800	1200	10800
280	350	69	289	341	2	305	2	445	1310	750	1100	15800
300	380	80	311	369	2.1	330	2.1	608	1700	750	1100	22200
320	400	80	331	389	2.1	350	2.1	630	1820	700	1000	23500
340	420	80	351	409	2.1	370	2.1	642	1900	670	950	24800
360	440	80	371	429	2.1	390	2.1	862	2010	630	900	26100

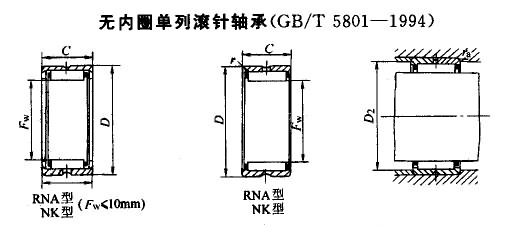

无内圈单列滚针轴承(摘自GB/T5801-1994)

轴承代号
RNA型、NK型

NK 5/10

NK 5/12

NK 6/10

NK 6/12

NK 7/10

NK 7/12

NK 8/12

NK 8/16

NK 9/12

NK 9/16

NK 10/12

NK 10/16

NK 12/12

NK 12/16

RNA 4900

NK 14/16

NK 14/20

NK 15/16

NK 15/20

RNA4901

NK 16/16

NK 16/20

RNA 6901

NK 17/16

NK 17/20

NK 18/16

NK 18/20

NK 19/16

NK 19/20

RNA4902

NK 20/16

NK 20/20

RNA6902

NK 21/16

NK 21/20

RNA4903

NK 22/16

NK 22/20

RNA6903

NK 24/16

NK 24/20

NK 25/16

NK 25/20

RNA 4904

RNA 6904

NK 26/16

NK 26/20

NK 28/20

NK 28/30

RNA 49/22

RNA 69/22

NK 29/20

NK 29/30

NK 30/20

NK 30/30

RNA 4905

基本尺寸/mm				安装尺寸/mm		基本额定载荷/kN		极限转速/(r/min)		重量/g
Fw	D	C	r(min)	D2(max)	ra(max)	Cr	C0r	脂	油	W≈
5	10	10	0,15	8.8	0.15	2.1	1.6	22000	32000	3.3
5	10	12	0.15	8.8	0.15	2.8	2.3	22000	32000	4
6	12	10	0.15	10.8	0,15	2.4	1.9	22000	32000	5.1
6	12	12	0.15	10.8	0.15	3.1	2.8	22000	32000	6.2
7	14	10	0.3	12	0.3	2.6	2.3	20000	30000	7.3
7	14	12	0.3	12	0.3	3.4	3.2	20000	30000	8.8
8	15	12	0.3	13	0.3	3.7	3.7	19000	28000	9.6
8	15	16	0.3	13	0.3	4.9	5.3	19000	28000	12.8
9	16	12	0.3	14	0.3	4.2	4.5	18000	26000	10.4
9	16	16	0.3	14	0.3	5.6	6.5	18000	26000	13.9
10	17	12	0.3	15	0.3	4.4	4.9	16000	24000	11.2
10	17	16	0.3	15	0.3	5.9	7.2	16000	24000	15.1
12	19	12	0.3	17	0.3	6.5	7.1	15000	22000	12.4
12	19	16	0.3	17	0.3	9.1	11	15000	22000	16.3
14	22	13	0.3	20	0.3	8.6	9.2	15000	22000	16.8
14	22	16	0.3	20	0.3	11	12.5	15000	22000	20.9
14	22	20	0.3	20	0.3	14	17	15000	22000	26.2
15	23	16	0.3	21	0.3	11	12.8	14000	20000	21.8
15	23	20	0.3	21	0.3	13.8	17.2	14000	20000	27.2
16	24	13	0.3	22	0.3	9.6	10.8	13000	19000	18.8
16	24	16	0.3	22	0.3	11.5	14	13000	19000	23
16	24	20	0.3	22	0.3	14.5	18.8	13000	19000	28.6
16	24	22	0.3	22	0.3	16.2	21.5	13000	19000	32.1
17	25	16	0.3	23	0.3	12.2	15	12000	18000	24.2
17	25	20	0.3	23	0.3	15.5	20.5	12000	18000	30.2
18	26	16	0.3	24	0.3	12.8	16.2	11000	17000	25.4
18	26	20	0.3	24	0.3	16.2	22	11000	17000	31.7
19	27	16	0.3	25	0.3	13.2	17.5	10000	16000	26.6
19	27	20	0.3	25	0.3	16.8	23.5	10000	16000	33.2
20	28	13	0.3	26	0.3	10.2	10.8	10000	16000	22.2
20	28	16	0.3	26	0.3	13.2	17.5	10000	16000	27.4
20	28	20	0.3	26	0.3	16.8	23.8	10000	16000	34.3
20	28	23	0.3	26	0.3	17.5	25.2	10000	16000	63.7
21	29	16	0.3	27	0.3	13.8	18.8	9500	15000	28.6
21	29	20	0.3	27	0.3	17.5	25.5	9500	15000	35.9
22	30	13	0.3	28	0.3	11.2	14.5	9500	15000	24.1
22	30	16	0.3	28	0.3	14.2	20	9500	15000	29.9
22	30	20	0.3	28	0.3	18	27	9500	15000	37.4
22	30	23	0.3	28	0.3	19	28.8	9500	15000	43.1
24	32	16	0.3	30	0.3	15.2	22.2	9000	14000	32.3
24	32	20	0.3	30	0.3	19.2	30.2	9000	14000	40.4
25	33	16	0.3	31	0.3	15.2	22.5	9000	14000	33.2
25	33	20	0.3	31	0.3	19.2	30.5	9000	14000	41.4
25	37	17	0.3	35	0.3	21.2	25.2	9000	14000	56.7
25	37	30	0.3	35	0.3	35.2	48.5	9000	14000	101
26	34	16	0.3	32	0.3	15.5	23.5	9000	13000	34.4
26	34	20	0.3	32	0.3	19.8	32	9000	13000	42.9
28	37	20	0.3	35	0.3	22.2	34	9000	13000	51.6
28	37	30	0.3	35	0.3	33.8	57.8	9000	13000	77.7
28	39	17	0.3	37	0.3	23.2	29.2	9000	13000	54.4
28	39	30	0.3	37	0.3	38.5	56.2	9000	13000	96.5
29	38	20	0.3	36	0.3	22.2	34	8000	12000	52.7
29	38	30	0.3	36	0.3	33.5	58	8000	12000	79.4
30	40	20	0.3	38	0.3	23	35.8	8000	12000	64.2
30	40	30	0.3	38	0.3	34.8	61	8000	12000	96.6
30	42	17	0.3	40	0.3	24	31.2	8000	12000	66.2

基本尺寸/mm				安装尺寸/mm		基本额定载荷/kN		极限转速/(r/min)		重量/g
Fw	D	C	r(min)	D2(max)	ra(max)	Cr	C0r	脂	油	W≈
5	10	10	0,15	8.8	0.15	2.1	1.6	22000	32000	3.3
5	10	12	0.15	8.8	0.15	2.8	2.3	22000	32000	4
6	12	10	0.15	10.8	0,15	2.4	1.9	22000	32000	5.1
6	12	12	0.15	10.8	0.15	3.1	2.8	22000	32000	6.2
7	14	10	0.3	12	0.3	2.6	2.3	20000	30000	7.3
7	14	12	0.3	12	0.3	3.4	3.2	20000	30000	8.8
8	15	12	0.3	13	0.3	3.7	3.7	19000	28000	9.6
8	15	16	0.3	13	0.3	4.9	5.3	19000	28000	12.8
9	16	12	0.3	14	0.3	4.2	4.5	18000	26000	10.4
9	16	16	0.3	14	0.3	5.6	6.5	18000	26000	13.9
10	17	12	0.3	15	0.3	4.4	4.9	16000	24000	11.2
10	17	16	0.3	15	0.3	5.9	7.2	16000	24000	15.1
12	19	12	0.3	17	0.3	6.5	7.1	15000	22000	12.4
12	19	16	0.3	17	0.3	9.1	11	15000	22000	16.3
14	22	13	0.3	20	0.3	8.6	9.2	15000	22000	16.8
14	22	16	0.3	20	0.3	11	12.5	15000	22000	20.9
14	22	20	0.3	20	0.3	14	17	15000	22000	26.2
15	23	16	0.3	21	0.3	11	12.8	14000	20000	21.8
15	23	20	0.3	21	0.3	13.8	17.2	14000	20000	27.2
16	24	13	0.3	22	0.3	9.6	10.8	13000	19000	18.8
16	24	16	0.3	22	0.3	11.5	14	13000	19000	23
16	24	20	0.3	22	0.3	14.5	18.8	13000	19000	28.6
16	24	22	0.3	22	0.3	16.2	21.5	13000	19000	32.1
17	25	16	0.3	23	0.3	12.2	15	12000	18000	24.2
17	25	20	0.3	23	0.3	15.5	20.5	12000	18000	30.2
18	26	16	0.3	24	0.3	12.8	16.2	11000	17000	25.4
18	26	20	0.3	24	0.3	16.2	22	11000	17000	31.7
19	27	16	0.3	25	0.3	13.2	17.5	10000	16000	26.6
19	27	20	0.3	25	0.3	16.8	23.5	10000	16000	33.2
20	28	13	0.3	26	0.3	10.2	10.8	10000	16000	22.2
20	28	16	0.3	26	0.3	13.2	17.5	10000	16000	27.4
20	28	20	0.3	26	0.3	16.8	23.8	10000	16000	34.3
20	28	23	0.3	26	0.3	17.5	25.2	10000	16000	63.7
21	29	16	0.3	27	0.3	13.8	18.8	9500	15000	28.6
21	29	20	0.3	27	0.3	17.5	25.5	9500	15000	35.9
22	30	13	0.3	28	0.3	11.2	14.5	9500	15000	24.1
22	30	16	0.3	28	0.3	14.2	20	9500	15000	29.9
22	30	20	0.3	28	0.3	18	27	9500	15000	37.4
22	30	23	0.3	28	0.3	19	28.8	9500	15000	43.1
24	32	16	0.3	30	0.3	15.2	22.2	9000	14000	32.3
24	32	20	0.3	30	0.3	19.2	30.2	9000	14000	40.4
25	33	16	0.3	31	0.3	15.2	22.5	9000	14000	33.2
25	33	20	0.3	31	0.3	19.2	30.5	9000	14000	41.4
25	37	17	0.3	35	0.3	21.2	25.2	9000	14000	56.7
25	37	30	0.3	35	0.3	35.2	48.5	9000	14000	101
26	34	16	0.3	32	0.3	15.5	23.5	9000	13000	34.4
26	34	20	0.3	32	0.3	19.8	32	9000	13000	42.9
28	37	20	0.3	35	0.3	22.2	34	9000	13000	51.6
28	37	30	0.3	35	0.3	33.8	57.8	9000	13000	77.7
28	39	17	0.3	37	0.3	23.2	29.2	9000	13000	54.4
28	39	30	0.3	37	0.3	38.5	56.2	9000	13000	96.5
29	38	20	0.3	36	0.3	22.2	34	8000	12000	52.7
29	38	30	0.3	36	0.3	33.5	58	8000	12000	79.4
30	40	20	0.3	38	0.3	23	35.8	8000	12000	64.2
30	40	30	0.3	38	0.3	34.8	61	8000	12000	96.6
30	42	17	0.3	40	0.3	24	31.2	8000	12000	66.2

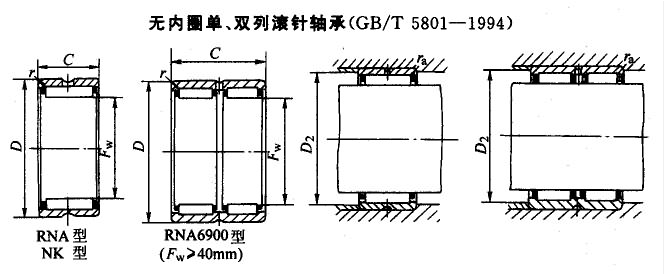

无内圈单、双列滚针轴承(摘自GB/T 5801-1994)

轴承代号
RNA型、NK型

RNA 6905

NK 32/20

NK 32/30

RNA 49/28

RNA 69/28

NK 35/20

NK 35/30

RNA 4906

RNA 6906

NK 37/20

NK 37/30

NK 38/20

NK 38/30

NK 40/20

NK 40/30

RNA 49/32

RNA 69/32

NK 42/20

NK 42/30

RNA 4907

RNA 6907

NK 43/30

NK 43/30

NK 45/20

NK 45/30

NK 47/20

NK 47/30

RNA 4908

RNA 6908

NK 50/25

NK 50/35

RNA 4909

RNA 6909

NK 55/25

NK 55/35

RNA 4910

RNA 6910

NK 60/25

NK 60/35

RNA 4911

RNA 6911

NK 65/25

NK 65/35

NK 68/25

NK 68/35

RNA 4912

RNA 6912

RNA 4913

RNA 6913

NK 73/25

NK 73/35

NK 75/25

NK 75/35

NK 80/25

NK 80/35

RNA 4914

RNA 6914

NK 85/25

RNA 4915

NK 85/35

RNA 6915

NK 90/25

RNA 4916

NK 90/35

RNA 6916

NK 95/26

NK 95/36

NK 100/26

RNA 4917

NK 100/36

RNA 6917

NK 105/26

RNA 4918

NK 105/36

RNA 6918

NK 110/30

RNA 4919

NK 110/40

RNA 6919

RNA 4920

RNA 6920

RNA 4822

RNA 4922

RNA 4824

RNA 4924

RNA 4826

RNA 4926

RNA 4828

RNA 4928

RNA 4830

RNA 4832

RNA 4834

RNA 4836

RNA 4838

RNA 4840

RNA 4844

RNA 4848

RNA 4852

RNA 4856

RNA 4860

RNA 4864

RNA 4868

RNA 4872

基本尺寸/mm				安装尺寸/mm		基本额定载荷/kN		极限转速/(r/min)		重量/g
Fw	D	C	r(min)	D2(max)	ra(max)	Cr	C0r	脂	油	W≈
30	42	30	0.3	40	0.3	40	60.2	8000	12000	117
32	42	20	0.3	40	0.3	23.5	37.8	7500	11000	67.6
32	42	30	0.3	40	0.3	35.5	64.2	7500	11000	102
32	45	17	0.3	43	0.3	24.8	33.2	7500	11000	79
32	45	30	0.3	43	0.3	41.5	64.2	7500	11000	140
35	45	20	0.3	43	0.3	24.8	41.5	7000	10000	73.1
35	45	30	0.3	43	0.3	37.5	70.5	7000	10000	110
35	47	17	0.3	45	0.3	25.5	35.5	7000	10000	74.7
35	47	30	0.3	45	0.3	42.8	68.5	7000	10000	133
37	47	20	0.3	45	0.3	25.2	43.2	6300	9000	76.5
37	47	30	0.3	45	0.3	38.2	74	6300	9000	115
38	48	20	0.3	46	0.3	26	45.2	6300	9000	78.5
38	48	30	0.3	46	0.3	39.2	77	6300	9000	118
40	50	20	0.3	48	0.3	26.5	47.2	6300	9000	81.9
40	50	30	0.3	48	0.3	40	80.2	6300	9000	123
40	52	20	0.6	48	0.6	31.5	48.5	6300	9000	98.7
40	52	36	0.6	48	0.6	48	83.2	6300	9000	—
42	52	20	0.3	50	0.3	27	49	6000	8500	85.3
42	52	30	0.3	50	0.3	40.8	83.5	6000	8500	128
42	55	20	0.6	51	0.6	32.5	51	6000	8500	116
42	55	36	0.6	51	0.6	49.5	87.2	6000	8500	—
43	53	20	0.3	51	0.3	27.5	50.8	5600	8000	87.3
43	53	30	0.3	51	0.3	41.5	86.5	5600	8000	132
45	55	20	0.3	53	0.3	28	52.8	5300	7500	90.7
45	55	30	0.3	53	0.3	42.5	89.8	5300	7500	137
47	57	20	0.3	55	0.3	29.2	56.5	5000	7000	94.7
47	57	30	0.3	55	0.3	44.2	96.2	5000	7000	143
48	62	22	0.6	58	0.6	43.5	66.2	5000	7000	146
48	62	40	0.6	58	0.6	62.8	108	5000	7000	—
50	62	25	0.6	58	0.6	38.8	74.2	4800	6700	154
50	62	35	0.6	58	0.6	51.8	108	4800	6700	215
52	68	22	0.6	64	0.6	46	73	4800	6700	194
52	68	40	0.6	64	0.6	67.2	118	4800	6700	—
55	68	25	0.6	64	0.6	41	82.5	4500	6300	188
55	68	35	0.6	64	0.6	54.8	120	4500	6300	264
58	72	22	0.6	68	0.6	48.2	80	4500	6300	172
58	72	40	0.6	68	0.6	70.2	128	4500	6300	—
60	72	25	0.6	68	0.6	43.2	90.8	4000	5600	181
60	72	35	0.6	68	0.6	57.5	132	4000	5600	254
63	80	25	1	75	1	58.5	99	4000	5600	274
63	80	45	1	75	1	87.8	168	4000	5600	—
65	78	25	0.6	74	0.6	45.2	98.8	4000	5600	219
65	78	35	0.6	74	0.6	60.2	142	4000	5600	307
68	82	25	0.6	78	0.6	45.5	92	3800	5300	245
68	82	35	0.6	78	0.6	66.5	150	3800	5300	343
68	85	25	1	80	1	61.2	108	3800	5300	294
68	85	45	1	80	1	90.8	182	3800	5300	—
72	90	25	1	85	1	62.2	112	3600	5000	335
72	90	45	1	85	1	93.2	188	3600	5000	—
73	90	25	1	85	1	54.2	100	3600	5000	319
73	90	35	1	85	1	79.5	165	3600	5000	448
75	92	25	1	87	1	55.2	105	3400	4800	328
75	92	35	1	87	1	81	170	3400	4800	460
80	95	25	1	90	1	57.2	112	3200	4500	288
80	95	35	1	90	1	83.8	182	3200	4500	405
80	100	30	1	95	1	84	152	3200	4500	491
80	100	54	1	95	1	130	260	3200	4500	—
85	105	25	1	100	1	69.2	120	3000	4300	429
85	105	30	1	100	1	85.5	158	3000	4300	515
85	105	35	1	100	1	100	195	3000	4300	600
85	105	54	1	100	1	130	270	3000	4300	—
90	110	25	1	105	1	72.2	130	2800	4000	452
90	110	30	1	105	1	89	170	2800	4000	544
90	110	35	1	105	1	105	210	2800	4000	634
90	110	54	1	105	1	135	292	2800	4000	—
95	115	26	1	110	1	76.8	142	2400	3600	492
95	115	36	1	110	1	110	225	2400	3600	681
100	120	26	1	115	1	79.8	152	2400	3600	517
100	120	35	1.1	113.5	1	112	235	2400	3600	687
100	120	36	1	115	1	115	242	2400	3600	716
100	120	63	1.1	113.5	1	155	365	2400	3600	—
105	125	26	1	120	1	80.8	158	2200	3400	538
105	125	35	1.1	118.5	1	115	250	2200	3400	721
105	125	36	1	120	1.1	115	250	2200	3400	745
105	125	63	1.1	118.5	1	165	388	2200	3400	—
110	130	30	1.1	123.5	1	98.2	205	2000	3200	647
110	130	35	1.1	123.5	1	120	265	2000	3200	754
110	130	40	1.1	123.5	1	125	285	2000	3200	864
110	130	63	1.1	123.5	1	172	412	2000	3200	—
115	140	40	1.1	133.5	1	130	270	2000	3200	1180
115	140	71	1.1	133.5	1	202	480	2000	3200	—
120	140	30	1	135	1	93	210	2000	3200	718
125	150	40	1.1	143.5	1	138	295	1900	3000	1275
130	150	30	1	145	1	96.2	225	1900	3000	771
135	165	45	1.1	158.5	1	180	382	1800	2800	1870
145	165	35	1.1	158.5	1	118	302	1700	2600	990
150	180	50	1.5	172	1.5	202	460	1600	2400	2280
155	175	35	1.1	168.5	1	122	320	1600	2400	1050
160	190	50	1.5	182	1.5	210	488	1500	2200	2410
165	190	40	1.1	183.5	1	152	395	1500	2200	1670
175	200	40	1.1	193.5	1	158	418	1500	2200	1760
185	215	45	1.1	208.5	1	192	520	1300	2000	2640
195	225	45	1.1	218.5	1	198	552	1200	1900	2770
210	240	50	1.5	232	1.5	230	688	1200	1800	3290
220	250	50	1.5	242	1.5	235	725	1100	1700	3440
240	270	50	1.5	262	1.5	245	785	950	1500	3730
265	300	60	2	291	2	352	1050	900	1400	5520
285	320	60	2	311	2	368	1130	800	1200	5910
305	350	69	2	341	2	445	1310	750	1100	9700
330	380	80	2.1	369	2.1	608	1700	750	1100	13100
350	400	80	2.1	389	2.1	630	1820	700	1000	13900
370	420	80	2.1	409	2.1	642	1900	670	950	14600
390	440	80	2.1	429	2.1	662	2010	630	900	15300

基本尺寸/mm				安装尺寸/mm		基本额定载荷/kN		极限转速/(r/min)		重量/g
Fw	D	C	r(min)	D2(max)	ra(max)	Cr	C0r	脂	油	W≈
30	42	30	0.3	40	0.3	40	60.2	8000	12000	117
32	42	20	0.3	40	0.3	23.5	37.8	7500	11000	67.6
32	42	30	0.3	40	0.3	35.5	64.2	7500	11000	102
32	45	17	0.3	43	0.3	24.8	33.2	7500	11000	79
32	45	30	0.3	43	0.3	41.5	64.2	7500	11000	140
35	45	20	0.3	43	0.3	24.8	41.5	7000	10000	73.1
35	45	30	0.3	43	0.3	37.5	70.5	7000	10000	110
35	47	17	0.3	45	0.3	25.5	35.5	7000	10000	74.7
35	47	30	0.3	45	0.3	42.8	68.5	7000	10000	133
37	47	20	0.3	45	0.3	25.2	43.2	6300	9000	76.5
37	47	30	0.3	45	0.3	38.2	74	6300	9000	115
38	48	20	0.3	46	0.3	26	45.2	6300	9000	78.5
38	48	30	0.3	46	0.3	39.2	77	6300	9000	118
40	50	20	0.3	48	0.3	26.5	47.2	6300	9000	81.9
40	50	30	0.3	48	0.3	40	80.2	6300	9000	123
40	52	20	0.6	48	0.6	31.5	48.5	6300	9000	98.7
40	52	36	0.6	48	0.6	48	83.2	6300	9000	—
42	52	20	0.3	50	0.3	27	49	6000	8500	85.3
42	52	30	0.3	50	0.3	40.8	83.5	6000	8500	128
42	55	20	0.6	51	0.6	32.5	51	6000	8500	116
42	55	36	0.6	51	0.6	49.5	87.2	6000	8500	—
43	53	20	0.3	51	0.3	27.5	50.8	5600	8000	87.3
43	53	30	0.3	51	0.3	41.5	86.5	5600	8000	132
45	55	20	0.3	53	0.3	28	52.8	5300	7500	90.7
45	55	30	0.3	53	0.3	42.5	89.8	5300	7500	137
47	57	20	0.3	55	0.3	29.2	56.5	5000	7000	94.7
47	57	30	0.3	55	0.3	44.2	96.2	5000	7000	143
48	62	22	0.6	58	0.6	43.5	66.2	5000	7000	146
48	62	40	0.6	58	0.6	62.8	108	5000	7000	—
50	62	25	0.6	58	0.6	38.8	74.2	4800	6700	154
50	62	35	0.6	58	0.6	51.8	108	4800	6700	215
52	68	22	0.6	64	0.6	46	73	4800	6700	194
52	68	40	0.6	64	0.6	67.2	118	4800	6700	—
55	68	25	0.6	64	0.6	41	82.5	4500	6300	188
55	68	35	0.6	64	0.6	54.8	120	4500	6300	264
58	72	22	0.6	68	0.6	48.2	80	4500	6300	172
58	72	40	0.6	68	0.6	70.2	128	4500	6300	—
60	72	25	0.6	68	0.6	43.2	90.8	4000	5600	181
60	72	35	0.6	68	0.6	57.5	132	4000	5600	254
63	80	25	1	75	1	58.5	99	4000	5600	274
63	80	45	1	75	1	87.8	168	4000	5600	—
65	78	25	0.6	74	0.6	45.2	98.8	4000	5600	219
65	78	35	0.6	74	0.6	60.2	142	4000	5600	307
68	82	25	0.6	78	0.6	45.5	92	3800	5300	245
68	82	35	0.6	78	0.6	66.5	150	3800	5300	343
68	85	25	1	80	1	61.2	108	3800	5300	294
68	85	45	1	80	1	90.8	182	3800	5300	—
72	90	25	1	85	1	62.2	112	3600	5000	335
72	90	45	1	85	1	93.2	188	3600	5000	—
73	90	25	1	85	1	54.2	100	3600	5000	319
73	90	35	1	85	1	79.5	165	3600	5000	448
75	92	25	1	87	1	55.2	105	3400	4800	328
75	92	35	1	87	1	81	170	3400	4800	460
80	95	25	1	90	1	57.2	112	3200	4500	288
80	95	35	1	90	1	83.8	182	3200	4500	405
80	100	30	1	95	1	84	152	3200	4500	491
80	100	54	1	95	1	130	260	3200	4500	—
85	105	25	1	100	1	69.2	120	3000	4300	429
85	105	30	1	100	1	85.5	158	3000	4300	515
85	105	35	1	100	1	100	195	3000	4300	600
85	105	54	1	100	1	130	270	3000	4300	—
90	110	25	1	105	1	72.2	130	2800	4000	452
90	110	30	1	105	1	89	170	2800	4000	544
90	110	35	1	105	1	105	210	2800	4000	634
90	110	54	1	105	1	135	292	2800	4000	—
95	115	26	1	110	1	76.8	142	2400	3600	492
95	115	36	1	110	1	110	225	2400	3600	681
100	120	26	1	115	1	79.8	152	2400	3600	517
100	120	35	1.1	113.5	1	112	235	2400	3600	687
100	120	36	1	115	1	115	242	2400	3600	716
100	120	63	1.1	113.5	1	155	365	2400	3600	—
105	125	26	1	120	1	80.8	158	2200	3400	538
105	125	35	1.1	118.5	1	115	250	2200	3400	721
105	125	36	1	120	1.1	115	250	2200	3400	745
105	125	63	1.1	118.5	1	165	388	2200	3400	—
110	130	30	1.1	123.5	1	98.2	205	2000	3200	647
110	130	35	1.1	123.5	1	120	265	2000	3200	754
110	130	40	1.1	123.5	1	125	285	2000	3200	864
110	130	63	1.1	123.5	1	172	412	2000	3200	—
115	140	40	1.1	133.5	1	130	270	2000	3200	1180
115	140	71	1.1	133.5	1	202	480	2000	3200	—
120	140	30	1	135	1	93	210	2000	3200	718
125	150	40	1.1	143.5	1	138	295	1900	3000	1275
130	150	30	1	145	1	96.2	225	1900	3000	771
135	165	45	1.1	158.5	1	180	382	1800	2800	1870
145	165	35	1.1	158.5	1	118	302	1700	2600	990
150	180	50	1.5	172	1.5	202	460	1600	2400	2280
155	175	35	1.1	168.5	1	122	320	1600	2400	1050
160	190	50	1.5	182	1.5	210	488	1500	2200	2410
165	190	40	1.1	183.5	1	152	395	1500	2200	1670
175	200	40	1.1	193.5	1	158	418	1500	2200	1760
185	215	45	1.1	208.5	1	192	520	1300	2000	2640
195	225	45	1.1	218.5	1	198	552	1200	1900	2770
210	240	50	1.5	232	1.5	230	688	1200	1800	3290
220	250	50	1.5	242	1.5	235	725	1100	1700	3440
240	270	50	1.5	262	1.5	245	785	950	1500	3730
265	300	60	2	291	2	352	1050	900	1400	5520
285	320	60	2	311	2	368	1130	800	1200	5910
305	350	69	2	341	2	445	1310	750	1100	9700
330	380	80	2.1	369	2.1	608	1700	750	1100	13100
350	400	80	2.1	389	2.1	630	1820	700	1000	13900
370	420	80	2.1	409	2.1	642	1900	670	950	14600
390	440	80	2.1	429	2.1	662	2010	630	900	15300

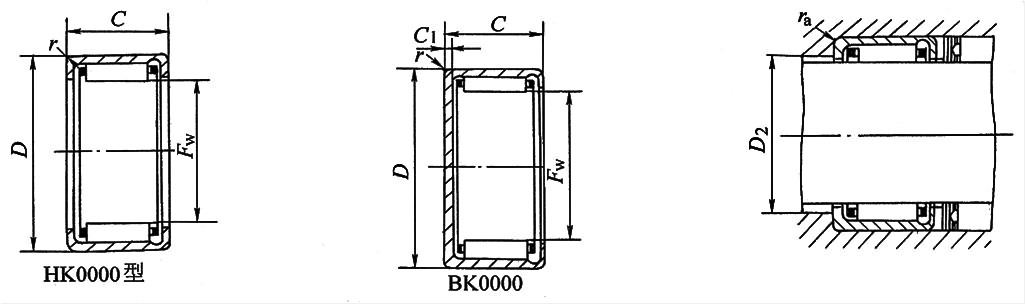

冲压外圈滚针轴承(摘自GB/T 290-1998)

轴承代号
HK0000型	BK0000型

HK 0408	BK 0408
HK 0409	BK 0409
HK 0508	BK 0508
HK 0509	BK 0509
HK 0608	BK 0608
HK 0609	BK 0609
HK 0610	BK 0610
HK 0708	BK 0708
HK 0709	BK 0709
HK 0710	BK 0710
HK 0712	BK 0712
HK 0808	BK 0808
HK 0809	BK 0809
HK 0810	BK 0810
HK 0812	BK 0812
HKH 0810	BKH 0810
HKH 0812	BKH 0812
HKH 0814	BKH 0814
HK 0908	BK 0908
HK 0909	BK 0909
HK 0910	BK 0910
HK 0912	BK 0912
HK 0914	BK 0914
HKH 0910	BKH 0910
HKH 0912	BKH 0912
HKH 0914	BKH 0914
HKH 0916	BKH 0916
HK 1008	BK 1008
HK 1009	BK 1009
HK 1010	BK 1010
HK 1012	BK 1012
HK 1014	BK 1014
HKH 1010	BKH 1010
HKH 1012	BKH 1012
HKH 1014	BKH 1014
HKH 1016	BKH 1016
HK 1208	BK 1208
HK 1209	BK 1209
HK 1210	BK 1210
HK1212	BK 1212
HK 1214	BK 1214
HKH 1210	BKH 1210
HKH 1212	BKH 1212
HKH 1214	BKH 1214
HKH 1216	BKH 1216
HKH 1218	BKH 1218
HK 1410	BK 1410
HK 1412	BK 1412
HK 1414	BK 1414
HK 1416	BK 1416
HK 1418	BK 1418
HK 1420	BK 1420
HKH 1412	BKH 1412
HKH 1414	BKH 1414
HKH 1416	BKH 1416
HKH 1418	BKH 1418
HKH 1420	BKH 1420
HK 1510	BK 1510
HK 1512	BK 1512
HK 1514	BK 1514
HK 1516	BK 1516
HK 1518	BK 1518
HK 1520	BK 1520
HKH 1512	BKH 1512
HKH 1514	BKH 1514
HKH 1516	BKH 1516
HKH 1518	BKH 1518
HKH 1520	BKH 1520
HK 1610	BK 1610
HK 1612	BK 1612
HK 1614	BK 1614
HK 1616	BK 1616
HK 1618	BK 1618
HK 1620	BK 1620
HKH 1612	BKH 1612
HKH 1614	BKH 1614
HKH 1616	BKH 1616
HKH 1618	BKH 1618
HKH 1620	BKH 1620
HK 1710	BK 1710
HK 1712	BK 1712
HK 1714	BK 1714
HK 1716	BK 1716
HK 1718	BK 1718
HK 1720	BK 1720
HKH 1712	BKH 1712
HKH 1714	BKH 1714
HKH 1716	BKH 1716
HKH 1718	BKH 1718
HKH 1720	BKH 1720
HK 1810	BK 1810
HK 1812	BK 1812
HK 1814	BK 1814
HK 1816	BK 1816
HK 1818	BK 1818
HK 1820	BK 1820
HKH 1812	BKH 1812
HKH 1814	BKH1814
HKH 1816	BKH 1816
HKH 1818	BKH 1818
HKH 1820	BKH 1820
HK 2010	BK 2010
HK 2012	BK 2012
HK 2014	BK 2014
HK 2016	BK 2016
HK 2018	BK 2018
HK 2020	BKH 2020
HKH 2012	BKH 2012
HKH 2014	BKH 2014
HKH 2016	BKH 2016
HKH 2018	BKH 2018
HKH 2020	BKH 2020
HK 2210	BK 2210
HK 2212	BK 2212
HK 2214	BK 2214
HK 2216	BK 2216
HK 2218	BK 2218
HK 2220	BK 2220
HKH 2212	BKH 2212
HKH 2214	BKH 2214
HKH 2216	BKH 2216
HKH 2218	BKH 2218
HKH 2220	BKH 2220
HK 2512	BK 2512
HK 2514	BK 2514
HK 2516	BK 2516
HK 2518	BK 2518
HK 2520	BK 2520
HK 2524	BK 2524
HKH 2514	BKH 2514
HKH 2516	BKH 2516
HKH 2518	BKH 2518
HKH 2520	BKH 2520
HKH 2524	BKH 2524
HK 2812	BK 2812
HK 2814	BK 2814
HK 2816	BK 2816
HK 2818	BK 2818
HK 2820	BK 2820
HK 2824	BK 2824
HKH 2814	BKH 2814
HKH 2816	BKH 2816
HKH 2818	BKH 2818
HKH 2820	BKH 2820
HKH 2824	BKH 2824
HK 3012	BK 3012
HK 3014	BK 3014
HK 3016	BK 3016
HK 3018	BK 3018
HK 3020	BK 3020
HK 3024	BK 3024
HKH 3014	BKH 3014
HKH 3016	BKH 3016
HKH 3018	BKH 3018
HKH 3020	BKH 3020
HKH 3024	BKH 3024
HK 3212	BK 3212
HK 3214	BK 3214
HK 3216	BK 3216
HK 3218	BK 3218
HK 3220	BK 3220
HK 3224	BK 3224
HKH 3214	BKH 3214
HKH 3216	BKH 3216
HKH 3218	BKH 3218
HKH 3220	BKH 3220
HKH 3224	BKH 3224
HK 3512	BK 3512
HK 3514	BK 3514
HK 3516	BK 3516
HK 3518	BK 3518
HK 3520	BK 3520
HK 3524	BK 3524
HKH 3514	BKH 3514
HKH 3516	BKH 3516
HKH 3518	BKH 3518
HKH 3520	BKH 3520
HKH 3524	BKH 3524
HK 3812	BK 3812
HK 3814	BK 3814
HK 3816	BK 3816
HK 3818	BK 3818
HK 3820	BK 3820
HK 3824	BK 3824
HKH 3814	BKH 3814
HKH 3816	BKH 3816
HKH 3818	BKH 3818
HKH 3820	BKH 3820
HKH 3824	BKH 3824
HK 4012	BK 4012
HK 4014	BK 4014
HK 4016	BK 4016
HK 4018	BK 4018
HK 4020	BK 4020
HK 4024	BK 4024
HKH 4014	BKH 4014
HKH 4016	BKH 4016
HKH 4018	BKH 4018
HKH 4020	BKH 4020
HKH 4024	BKH 4024
HK 4212	BK 4212
HK 4214	BK 4214
HK 4216	BK 4216
HK 4218	BK 4218
HK 4220	BK 4220
HK 4224	BK 4224
HKH 4214	BKH 4214
HKH 4216	BKH 4216
HKH 4218	BKH 4218
HKH 4220	BKH 4220
HKH 4224	BKH 4224
HK 4512	BK 4512
HK 4514	BK 4514
HK 4516	BK 4516
HK 4518	BK 4518
HK 4520	BK 4520
HK 4524	BK 4524
HKH 4514	BKH 4514
HKH 4516	BKH 4516
HKH 4518	BKH 4518
HKH 4520	BKH 4520
HKH 4524	BKH 4524
HK 5016	BK 5016
HK 5018	BK 5018
HK 5020	BK 5020
HK 5024	BK 5024
HK 5516	BK 5516
HK 5518	BK 5518
HK 5520	BK 5520
HK 5524	BK 5524
HK 6016	BK 6016
HK 6018	BK 6018
HK 6020	BK 6020
HK 6024	BK 6024
HK 6516	BK 6516
HK 6518	BK 6518
HK 6520	BK 6520
HK 6524	BK 6524
HK 7016	BK 7016
HK 7018	BK 7018
HK 7020	BK 7020
HK 7024	BK 7024

基本尺寸/mm			安装尺寸/mm		其他尺寸/mm		基本额定载荷/kN		极限转速/(r/min)		重量/g
Fw	D	C	D2(max)	ra(max)	C1(max)	r(min)	Cr	C0r	脂	油	W(HK型)	W(BK型)
4	8	8	5	0.3	1	0.3	1.5	1.2	20000	28000	1.4	1.5
4	8	9	5	0.4	1	0.4	1.8	1.4	20000	28000	1.6	1.7
5	9	8	5.3	0.4	1	0.4	1.9	1.6	17000	24000	1.7	1.8
5	9	9	5.3	0.4	1	0.4	2.3	2	17000	24000	1.9	2
6	10	8	6.3	0.4	1	0.4	2.1	1.9	16000	22000	1.9	2.1
6	10	9	6.3	0.4	1	0.4	2.5	2.4	16000	22000	2.1	2.3
6	10	10	6.3	0.4	1	0.4	2.9	2.9	16000	22000	2.4	2.5
7	11	8	7.3	0.4	1	0.4	2.3	2.2	15000	20000	2.1	2.3
7	11	9	7.3	0.4	1	0.4	2.7	2.7	15000	20000	2.4	2.5
7	11	10	7.3	0.4	1	0.4	3.1	3.3	15000	20000	2.7	2.9
7	11	12	7.3	0.4	1	0.4	3.9	4.3	15000	20000	3.3	3.4
8	12	8	8.3	0.4	1	0.4	2.4	2.4	14000	19000	2.4	2.6
8	12	9	8.3	0.4	1	0.4	2.9	3.1	14000	19000	2.7	2.9
8	12	10	8.3	0.4	1	0.4	3.3	3.7	14000	19000	2.9	3.2
8	12	12	8.3	0.4	1	0.4	4.2	4.9	14000	19000	3.6	3.8
8	14	10	9	0.4	1.3	0.4	3.4	3.2	14000	19000	5.5	5.9
8	14	12	9	0.4	1.3	0.4	4.4	4.4	14000	19000	6.6	7.1
8	14	14	9	0.4	1.3	0.4	5.4	5.7	14000	19000	7.9	8.3
9	13	8	9.3	0.4	1	0.4	2.7	2.9	13000	18000	2.7	2.9
9	13	9	9.3	0.4	1	0.4	3.3	3.7	13000	18000	2.9	3.2
9	13	10	9.3	0.4	1	0.4	3.7	4.4	13000	18000	3.3	3.5
9	13	12	9.3	0.4	1	0.4	4.7	5.9	13000	18000	4.1	4.3
9	13	14	9.3	0.4	1	0.4	5.6	7.4	13000	18000	4.9	5.2
9	15	10	10	0.4	1.3	0.4	3.7	3.6	13000	18000	5.9	6.4
9	15	12	10	0.4	1.3	0.4	4.8	5	13000	18000	7.2	7.7
9	15	14	10	0.4	1.3	0.4	5.8	6.5	13000	18000	8.4	9
9	15	16	10	0.4	1.3	0.4	6.8	7.9	13000	18000	9.8	10.4
10	14	8	10.3	0.4	1	0.4	2.9	3.2	11000	17000	2.9	3.2
10	14	9	10.3	0.4	1	0.4	3.4	4	11000	17000	3.1	3.5
10	14	10	10.3	0.4	1	0.4	3.9	4.8	11000	17000	3.6	3.9
10	14	12	10.3	0.4	1	0.4	4.9	6.4	11000	17000	4.4	4.8
10	14	14	10.3	0.4	1	0.4	5.8	8	11000	17000	5.3	5.6
10	16	10	11	0.4	1.3	0.4	3.9	4	11000	17000	6.4	7
10	16	12	11	0.4	1.3	0.4	5.1	5.6	11000	17000	7.8	8.5
10	16	14	11	0.4	1.3	0.4	6.2	7.3	11000	17000	9.1	9.8
10	16	16	11	0.4	1.3	0.4	7.3	8.9	11000	17000	10.6	11.2
12	16	8	12.3	0.4	1	0.4	3.1	3.8	9500	15000	3.3	3.8
12	16	9	12.3	0.4	1	0.4	3.7	4.7	9500	15000	3.7	4.2
12	16	10	12.3	0.4	1	0.4	4.3	5.6	9500	15000	4.1	4.6
12	16	12	12.3	0.4	1	0.4	5.3	7.5	9500	15000	5.1	5.5
12	16	14	12.3	0.4	1	0.4	6.3	9.4	9500	15000	6	6.5
12	18	10	13	0.4	1.3	0.4	4.4	4.9	9500	15000	7.3	8.3
12	18	12	13	0.4	1.3	0.4	5.8	6.9	9500	15000	9	9.9
12	18	14	13	0.4	1.3	0.4	7	8.8	9500	15000	10.6	11.5
12	18	16		0.4	1.3	0.4	8.2	10.8	9500	15000	12.2	13.2
12	18	18	13	0.4	1.3	0.4	9.3	12.8	9500	15000	13.8	14.7
14	20	10	15	0.4	1.3	0.4	4.9	5.8	9500	15000	8.3	9.6
14	20	12	15	0.4	1.3	0.4	6.3	8.1	9500	15000	10.1	11.3
14	20	14	15	0.4	1.3	0.4	7.7	10.5	9500	15000	12	13.2
14	20	16	15	0.4	1.3	0.4	9	12.8	9500	15000	13.9	15.2
14	20	18	15	0.4	1.3	0.4	10.2	15	9500	15000	15.6	16.9
14	20	20	15	0.4	1.3	0.4	11.5	17.2	9500	15000	17.5	18.7
14	22	12	16	0.4	1.3	0.4	7	7.2	9500	15000	13.2	14.5
14	22	14	16	0.4	1.3	0.4	8.8	9.6	9500	15000	15.7	17
14	22	16	16	0.4	1.3	0.4	10.5	12	9500	15000	18.1	19.4
14	22	18	16	0.4	1.3	0.4	12.2	14.2	9500	15000	20.5	21.8
14	22	20	16	0.4	1.3	0.4	13.5	16.8	9500	15000	23.1	24.4
15	21	10	16	0.4	1.3	0.4	5.1	6.2	9000	14000	8.7	10.2
15	21	12	16	0.4	1.3	0.4	6.6	8.7	9000	14000	10.7	12.1
15	21	14	16	0.4	1.3	0.4	8	11.2	9000	14000	12.7	14.1
15	21	16	16	0.4	1.3	0.4	9.4	13.8	9000	14000	14.5	16
15	21	18	16	0.4	1.3	0.4	10.8	16.2	9000	14000	16.5	18
15	21	20	16	0.4	1.3	0.4	12	18.5	9000	14000	18.5	20
15	23	12	17	0.4	1.3	0.4	7.5	7.9	9000	14000	13.9	15.4
15	23	14	17	0.4	1.3	0.4	9.4	10.5	9000	14000	16.6	18.1
15	23	16	17	0.4	1.3	0.4	11.2	13.2	9000	14000	19.3	20.8
15	23	18	17	0.4	1.3	0.4	12.8	15.8	9000	14000	21.8	23.3
15	23	20	17	0.4	1.3	0.4	14.5	18.5	9000	14000	24.4	25.9
16	22	10	17	0.4	1.3	0.4	5.3	6.6	8500	13000	9	10.6
16	22	12	17	0.4	1.3	0.4	6.8	9.3	8500	13000	11	12.6
16	22	14	17	0.4	1.3	0.4	8.3	12	8500	13000	13	14.7
16	22	16	17	0.4	1.3	0.4	9.7	14.5	8500	13000	15.1	16.7
16	22	18	17	0.4	1.3	0.4	11.2	17.2	8500	13000	17.2	18.8
16	22	20	17	0.4	1.3	0.4	12.5	20	8500	13000	19.2	20.9
16	24	12	18	0.8	1.3	0.8	7.5	8	8500	13000	14.1	15.8
16	24	14	18	0.8	1.3	0.8	9.4	10.8	8500	13000	17	18.6
16	24	16	18	0.8	1.3	0.8	11.2	13.2	8500	13000	19.6	21.3
16	24	18	18	0.8	1.3	0.8	12.8	16	8500	13000	22.3	24
16	24	20	18	0.8	1.3	0.8	14.5	18.8	8500	13000	24.9	26.6
17	23	10	18	0.4	1.3	0.4	5.5	7.1	8000	12000	9.3	11.2
17	23	12	18	0.4	1.3	0.4	7.1	9.9	8000	12000	11.5	13.4
17	23	14	18	0.4	1.3	0.4	8.6	12.8	8000	12000	13.7	15.6
17	23	16	18	0.4	1.3	0.4	10.2	15.5	8000	12000	15.9	17.7
17	23	18	18	0.4	1.3	0.4	11.5	18.5	8000	12000	18.1	19.9
17	23	20	18	0.4	1.3	0.4	13.5	22.5	8000	12000	20.8	22.4
17	25	12	19	0.8	1.3	0.8	7.9	8.8	8000	12000	14.9	16.8
17	25	14	19	0.8	1.3	0.8	9.9	11.8	8000	12000	17.8	19.7
17	25	16	19	0.8	1.3	0.8	11.8	14.5	8000	12000	20.7	22.6
17	25	18	19	0.8	1.3	0.8	13.5	17.5	8000	12000	23.5	25.4
17	25	20	19	0.8	1.3	0.8	15.2	20.5	8000	12000	26.4	28.3
18	24	10	19	0.4	1.3	0.4	5.6	7.5	7500	11000	9.9	12
18	24	12	19	0.4	1.3	0.4	7.3	10.5	7500	11000	12.1	14.2
18	24	14	19	0.4	1.3	0.4	8.9	13.5	7500	11000	14.5	16.5
18	24	16	19	0.4	1.3	0.4	10.5	16.5	7500	11000	16.7	18.8
18	24	18	19	0.4	1.3	0.4	12	19.5	7500	11000	19	21.1
18	24	20	19	0.4	1.3	0.4	13.2	22.5	7500	11000	21.2	23.3
18	26	12	20	0.8	1.3	0.8	8.3	9.5	7500	11000	15.7	17.9
18	26	14	20	0.8	1.3	0.8	10.5	12.8	7500	11000	18.8	20.9
18	26	16	20	0.8	1.3	0.8	12.5	15.8	7500	11000	21.8	23.9
18	26	18	20	0.8	1.3	0.8	14.2	19	7500	11000	24.8	26.9
18	26	20	20	0.8	1.3	0.8	16.2	22.2	7500	11000	27.8	30
20	26	10	21	0.4	1.3	0.4	6	8.4	7000	10000	10.8	13.3
20	26	12	21	0.4	1.3	0.4	7.8	11.8	7000	10000	13.3	15.8
20	26	14	21	0.4	1.3	0.4	9.5	15.2	7000	10000	15.7	18.3
20	26	16	21	0.4	1.3	0.4	11.2	18.5	7000	10000	18.2	20.8
20	26	18	21	0.4	1.3	0.4	12.5	21.8	7000	10000	20.8	23.3
20	26	20	21	0.4	1.3	0.4	14.2	25.2	7000	10000	23.3	25.8
20	28	12	22	0.8	1.3	0.8	8.7	10.2	7000	10000	17.1	19.7
20	28	14	22	0.8	1.3	0.8	11	13.8	7000	10000	20.3	22.9
20	28	16	22	0.8	1.3	0.8	13	17.2	7000	10000	23.6	26.2
20	28	18	22	0.8	1.3	0.8	15	20.8	7000	10000	26.8	29.4
20	28	20	22	0.8	1.3	0.8	16.8	24.2	7000	10000	30.2	32.8
22	28	10	23	0.4	1.3	0.4	6.3	9.3	6700	9500	11.7	14.8
22	28	12	23	0.4	1.3	0.4	8.2	13	6700	9500	14.4	17.5
22	28	14	23	0.4	1.3	0.4	10	16.8	6700	9500	17.2	20.2
22	28	16	23	0.4	1.3	0.4	11.8	20.5	6700	9500	19.9	22.9
22	28	18	23	0.4	1.3	0.4	13.2	24.2	6700	9500	22.5	25.6
22	28	20	23	0.4	1.3	0.4	15	27.8	6700	9500	25.3	28.4
22	30	12	24	0.8	1.3	0.8	9.1	11.2	6700	9500	18.4	21.5
22	30	14	24	0.8	1.3	0.8	11.2	15	6700	9500	21.9	25
22	30	16	24	0.8	1.3	0.8	13.5	18.5	6700	9500	25.3	28.4
22	30	18	24	0.8	1.3	0.8	15.5	22.2	6700	9500	28.9	32.1
22	30	20	24	0.8	1.3	0.8	17.5	26	6700	9500	32.4	35.6
25	32	12	27	0.8	1.3	0.8	9.1	13.2	6300	9000	18.3	22.2
26	32	14	27	0.8	1.3	0.8	11.5	17.5	6300	9000	21.9	25.9
27	32	16	27	0.8	1.3	0.8	13.5	22	6300	9000	25.2	29.2
28	32	18	27	0.8	1.3	0.8	15.5	26.5	6300	9000	28.8	32.8
29	32	20	27	0.8	1.3	0.8	17.5	30.8	6300	9000	32.3	36.3
30	32	24	27	0.8	1.3	0.8	21.2	39.5	6300	9000	39.3	43.2
31	35	14	28	0.8	1.6	0.8	12.2	14	6300	9000	29.9	34
32	35	16	28	0.8	1.6	0.8	15	18.2	6300	9000	35	39
33	35	18	28	0.8	1.6	0.8	17.5	22.5	6300	9000	40	44.1
34	35	20	28	0.8	1.6	0.8	20.2	26.8	6300	9000	44.9	49
35	35	24	28	0.8	1.6	0.8	25	35.2	6300	9000	54.8	58.9
28	35	12	30	0.8	1.3	0.8	9.5	14.5	6300	9000	20	24.9
28	35	14	30	0.8	1.3	0.8	12	19.5	6300	9000	24	29
28	35	16	30	0.8	1.3	0.8	14.2	24.2	6300	9000	27.6	32.6
28	35	18	30	0.8	1.3	0.8	16.2	29.2	6300	9000	31.7	36.6
28	35	20	30	0.8	1.3	0.8	18.5	34	6300	9000	35.5	40.5
28	35	24	30	0.8	1.3	0.8	22.5	43.5	6300	9000	43.2	48.1
28	38	14	31	0.8	1.6	0.8	13.2	16.2	6300	9000	33.2	38.3
28	38	16	31	0.8	1.6	0.8	16.5	21.2	6300	9000	38.8	43.9
28	38	18	31	0.8	1.6	0.8	19.2	26.2	6300	9000	44.4	49.5
28	38	20	31	0.8	1.6	0.8	22.2	31	6300	9000	49.8	54.9
28	38	24	31	0.8	1.6	0.8	27.5	41	6300	9000	60.8	65.8
30	37	12	32	0.8	1.3	0.8	10	15.8	5600	8000	21.4	27.1
30	37	14	32	0.8	1.3	0.8	12.5	21.2	5600	8000	25.5	31.2
30	37	16	32	0.8	1.3	0.8	15	26.5	5600	8000	29.6	35.3
30	37	18	32	0.8	1.3	0.8	17.2	31.8	5600	8000	33.6	39.3
30	37	20	32	0.8	1.3	0.8	19.2	37	5600	8000	37.9	43.6
30	37	24	32	0.8	1.3	0.8	23.5	47.5	5600	8000	46	51.7
30	40	14	33	0.8	1.6	0.8	13.8	17.5	5600	8000	35.2	41
30	40	16	33	0.8	1.6	0.8	17	22.8	5600	8000	41.1	46.9
30	40	18	33	0.8	1.6	0.8	20.2	28	5600	8000	47	52.8
30	40	20	33	0.8	1.6	0.8	23	33.2	5600	8000	52.8	58.6
30	40	24	33	0.8	1.6	0.8	28.5	43.8	5600	8000	64.4	70.2
32	39	12	34	0.8	1.3	0.8	10.5	17.2	5300	7500	22.7	29.2
32	39	14	34	0.8	1.3	0.8	13.2	23	5300	7500	27.2	33.7
32	39	16	34	0.8	1.3	0.8	15.5	28.5	5300	7500	31.3	37.8
32	39	18	34	0.8	1.3	0.8	18	34.2	5300	7500	35.8	42.3
32	39	20	34	0.8	1.3	0.8	20.2	40	5300	7500	40.4	46.8
32	39	24	34	0.8	1.3	0.8	24.5	51.5	5300	7500	49	55.5
32	42	14	35	0.8	1.6	0.8	14.5	18.5	5300	7500	37.2	43.7
32	42	16	35	0.8	1.6	0.8	17.8	24.2	5300	7500	43.5	50.1
32	42	18	35	0.8	1.6	0.8	20.8	29.8	5300	7500	49.7	56.3
32	42	20	35	0.8	1.6	0.8	23.8	35.5	5300	7500	55.8	62.4
32	42	24	35	0.8	1.6	0.8	29.5	46.8	5300	7500	68.1	74.7
35	42	12	37	0.8	1.3	0.8	10.8	18.5	5000	7000	24.5	32.3
35	42	14	37	0.8	1.3	0.8	13.5	24.5	5000	7000	29.3	37.1
35	42	16	37	0.8	1.3	0.8	16.2	30.8	5000	7000	33.9	41.6
35	42	18	37	0.8	1.3	0.8	18.5	37	5000	7000	38.7	46.4
35	42	20	37	0.8	1.3	0.8	21	43.2	5000	7000	43.5	51.2
35	42	24	37	0.8	1.3	0.8	25.5	55.5	5000	7000	52.8	60.5
35	45	14	38	0.8	1.6	0.8	14.8	19.8	5000	7000	39.8	47.6
35	45	16	38	0.8	1.6	0.8	18.2	25.8	5000	7000	46.5	54.4
35	45	18	38	0.8	1.6	0.8	21.5	31.8	5000	7000	53.2	61
35	45	20	38	0.8	1.6	0.8	24.5	37.8	5000	7000	59.8	67.7
35	45	24	38	0.8	1.6	0.8	30.2	49.8	5000	7000	72.9	80.8
38	45	12	40	0.8	1.3	0.8	11.2	19.8	4500	6300	26.4	35.4
38	45	14	40	0.8	1.3	0.8	14	26.5	4500	6300	31.5	40.6
38	45	16	40	0.8	1.3	0.8	16.8	33	4500	6300	36.4	45.4
38	45	18	40	0.8	1.3	0.8	19.2	39.5	4500	6300	41.5	50.6
38	45	20	40	0.8	1.3	0.8	21.8	46.2	4500	6300	46.7	55.7
38	45	24	40	0.8	1.3	0.8	26.2	59.5	4500	6300	56.7	65.8
38	48	14	41	0.8	1.6	0.8	15.8	22.2	4500	6300	43.1	52.3
38	48	16	41	0.8	1.6	0.8	19.5	28.8	4500	6300	50.4	59.6
38	48	18	41	0.8	1.6	0.8	22.8	35.5	4500	6300	57.6	66.8
38	48	20	41	0.8	1.6	0.8	26.2	42.2	4500	6300	64.7	73.9
38	48	24	41	0.8	1.6	0.8	32.2	55.5	4500	6300	78.9	88.1
40	47	12	42	0.8	1.3	0.8	11.5	21.2	4500	6300	37.6	37.7
40	47	14	42	0.8	1.3	0.8	14.5	28.2	4500	6300	33.1	43.1
40	47	16	42	0.8	1.3	0.8	17.2	35.2	4500	6300	38.1	48.2
40	47	18	42	0.8	1.3	0.8	20	42.2	4500	6300	43.7	53.7
40	47	20	42	0.8	1.3	0.8	22.5	49.2	4500	6300	49	59.1
40	47	24	42	0.8	1.3	0.8	27.2	63.5	4500	6300	59.6	69.7
40	50	14	43	0.8	1.6	0.8	16.2	23.2	4500	6300	45.1	55.2
40	50	16	43	0.8	1.6	0.8	20	30.2	4500	6300	52.7	62.8
40	50	18	43	0.8	1.6	0.8	23.5	37.2	4500	6300	60.3	70.4
40	50	20	43	0.8	1.6	0.8	26.8	44.5	4500	6300	67.7	77.8
40	50	24	43	0.8	1.6	0.8	33.2	58.5	4500	6300	82.7	92.8
42	49	12	44	0.8	1.3	0.8	12	22.5	4300	6000	29	40.1
42	49	14	44	0.8	1.3	0.8	15	30	4300	6000	34.7	45.7
42	49	16	44	0.8	1.3	0.8	18	37.5	4300	6000	40.1	51.2
42	49	18	44	0.8	1.3	0.8	20.5	45	4300	6000	45.8	56.8
42	49	20	44	0.8	1.3	0.8	23.2	52.2	4300	6000	51.4	62.5
42	49	24	44	0.8	1.3	0.8	28.2	67.2	4300	6000	62.5	73.6
42	52	14	46	0.8	1.6	0.8	16.5	24.5	4300	6000	47	58.2
42	52	16	46	0.8	1.6	0.8	20.5	31.8	4300	6000	54.9	66.1
42	52	18	46	0.8	1.6	0.8	24	39.2	4300	6000	62.9	74.1
42	52	20	46	0.8	1.6	0.8	27.5	46.5	4300	6000	70.6	81.8
42	52	24	46	0.8	1.6	0.8	34.2	61.5	4300	6000	86.2	97.4
45	52	12	47	0.8	1.3	0.8	12.2	23.8	3800	5300	30.8	43.5
45	52	14	47	0.8	1.3	0.8	15.5	31.8	3800	5300	36.8	49.5
45	52	16	47	0.8	1.3	0.8	18.5	39.5	3800	5300	42.5	55.2
45	52	18	47	0.8	1.3	0.8	21.2	47.5	3800	5300	48.6	61.3
45	52	20	47	0.8	1.3	0.8	24	55.5	3800	5300	54.7	67.4
45	52	24	47	0.8	1.3	0.8	29	71.2	3800	5300	66.4	79.1
45	55	14	49	0.8	1.6	0.8	17	25.5	3800	5300	49.6	62.5
45	55	16	49	0.8	1.6	0.8	20.8	33.5	3800	5300	58.1	70.9
45	55	18	49	0.8	1.6	0.8	24.5	41.2	3800	5300	66.4	79.3
45	55	20	49	0.8	1.6	0.8	28.2	50	3800	5300	74.6	87.4
45	55	24	49	0.8	1.6	0.8	34.8	64.5	3800	5300	91.1	104
50	58	16	53	0.8	1.6	0.8	21.2	43.5	3400	4800	52.7	68.4
50	58	18	53	0.8	1.6	0.8	24.5	52.2	3400	4800	60	75.6
50	58	20	53	0.8	1.6	0.8	27.8	61	3400	4800	67.3	82.9
50	58	24	53	0.8	1.6	0.8	33.8	78.5	3400	4800	82.3	97.9
55	63	16	58	0.8	1.6	0.8	22.2	47.5	3200	4500	57.3	76.2
55	63	18	58	0.8	1.6	0.8	25.8	57.2	3200	4500	65.3	84.2
55	63	20	58	0.8	1.6	0.8	29	66.5	3200	4500	73.3	92.2
55	63	24	58	0.8	1.6	0.8	35.2	85.5	3200	4500	89.6	109
60	68	16	63	0.8	1.6	0.8	23.5	52.8	2800	4000	62.4	84.9
61	68	18	63	0.8	1.6	0.8	27.2	63.5	2800	4000	71.1	93.6
60	68	20	63	0.8	1.6	0.8	30.5	74	2800	4000	79.8	102
60	68	24	63	0.8	1.6	0.8	37.2	95	2800	4000	97.6	120
65	73	16	68	0.8	1.6	0.8	24.5	56.8	2800	4000	67.1	93.5
65	73	18	68	0.8	1.6	0.8	28.2	68.2	2800	4000	76.5	103
65	73	20	68	0.8	1.6	0.8	31.8	79.5	2800	4000	85.8	112
65	73	24	68	0.8	1.6	0.8	38.6	102	2800	4000	105	131
70	78	16	73	0.8	1.6	0.8	25.2	60.8	2600	3800	71.8	102
70	78	18	73	0.8	1.6	0.8	29.2	73	2600	3800	81.8	112
70	78	20	73	0.8	1.6	0.8	32.8	85.2	2600	3800	91.9	122
70	78	24	73	0.8	1.6	0.8	40	110	2600	3800	112	143

基本尺寸/mm			安装尺寸/mm		其他尺寸/mm		基本额定载荷/kN		极限转速/(r/min)		重量/g
Fw	D	C	D2(max)	ra(max)	C1(max)	r(min)	Cr	C0r	脂	油	W(HK型)	W(BK型)
4	8	8	5	0.3	1	0.3	1.5	1.2	20000	28000	1.4	1.5
4	8	9	5	0.4	1	0.4	1.8	1.4	20000	28000	1.6	1.7
5	9	8	5.3	0.4	1	0.4	1.9	1.6	17000	24000	1.7	1.8
5	9	9	5.3	0.4	1	0.4	2.3	2	17000	24000	1.9	2
6	10	8	6.3	0.4	1	0.4	2.1	1.9	16000	22000	1.9	2.1
6	10	9	6.3	0.4	1	0.4	2.5	2.4	16000	22000	2.1	2.3
6	10	10	6.3	0.4	1	0.4	2.9	2.9	16000	22000	2.4	2.5
7	11	8	7.3	0.4	1	0.4	2.3	2.2	15000	20000	2.1	2.3
7	11	9	7.3	0.4	1	0.4	2.7	2.7	15000	20000	2.4	2.5
7	11	10	7.3	0.4	1	0.4	3.1	3.3	15000	20000	2.7	2.9
7	11	12	7.3	0.4	1	0.4	3.9	4.3	15000	20000	3.3	3.4
8	12	8	8.3	0.4	1	0.4	2.4	2.4	14000	19000	2.4	2.6
8	12	9	8.3	0.4	1	0.4	2.9	3.1	14000	19000	2.7	2.9
8	12	10	8.3	0.4	1	0.4	3.3	3.7	14000	19000	2.9	3.2
8	12	12	8.3	0.4	1	0.4	4.2	4.9	14000	19000	3.6	3.8
8	14	10	9	0.4	1.3	0.4	3.4	3.2	14000	19000	5.5	5.9
8	14	12	9	0.4	1.3	0.4	4.4	4.4	14000	19000	6.6	7.1
8	14	14	9	0.4	1.3	0.4	5.4	5.7	14000	19000	7.9	8.3
9	13	8	9.3	0.4	1	0.4	2.7	2.9	13000	18000	2.7	2.9
9	13	9	9.3	0.4	1	0.4	3.3	3.7	13000	18000	2.9	3.2
9	13	10	9.3	0.4	1	0.4	3.7	4.4	13000	18000	3.3	3.5
9	13	12	9.3	0.4	1	0.4	4.7	5.9	13000	18000	4.1	4.3
9	13	14	9.3	0.4	1	0.4	5.6	7.4	13000	18000	4.9	5.2
9	15	10	10	0.4	1.3	0.4	3.7	3.6	13000	18000	5.9	6.4
9	15	12	10	0.4	1.3	0.4	4.8	5	13000	18000	7.2	7.7
9	15	14	10	0.4	1.3	0.4	5.8	6.5	13000	18000	8.4	9
9	15	16	10	0.4	1.3	0.4	6.8	7.9	13000	18000	9.8	10.4
10	14	8	10.3	0.4	1	0.4	2.9	3.2	11000	17000	2.9	3.2
10	14	9	10.3	0.4	1	0.4	3.4	4	11000	17000	3.1	3.5
10	14	10	10.3	0.4	1	0.4	3.9	4.8	11000	17000	3.6	3.9
10	14	12	10.3	0.4	1	0.4	4.9	6.4	11000	17000	4.4	4.8
10	14	14	10.3	0.4	1	0.4	5.8	8	11000	17000	5.3	5.6
10	16	10	11	0.4	1.3	0.4	3.9	4	11000	17000	6.4	7
10	16	12	11	0.4	1.3	0.4	5.1	5.6	11000	17000	7.8	8.5
10	16	14	11	0.4	1.3	0.4	6.2	7.3	11000	17000	9.1	9.8
10	16	16	11	0.4	1.3	0.4	7.3	8.9	11000	17000	10.6	11.2
12	16	8	12.3	0.4	1	0.4	3.1	3.8	9500	15000	3.3	3.8
12	16	9	12.3	0.4	1	0.4	3.7	4.7	9500	15000	3.7	4.2
12	16	10	12.3	0.4	1	0.4	4.3	5.6	9500	15000	4.1	4.6
12	16	12	12.3	0.4	1	0.4	5.3	7.5	9500	15000	5.1	5.5
12	16	14	12.3	0.4	1	0.4	6.3	9.4	9500	15000	6	6.5
12	18	10	13	0.4	1.3	0.4	4.4	4.9	9500	15000	7.3	8.3
12	18	12	13	0.4	1.3	0.4	5.8	6.9	9500	15000	9	9.9
12	18	14	13	0.4	1.3	0.4	7	8.8	9500	15000	10.6	11.5
12	18	16		0.4	1.3	0.4	8.2	10.8	9500	15000	12.2	13.2
12	18	18	13	0.4	1.3	0.4	9.3	12.8	9500	15000	13.8	14.7
14	20	10	15	0.4	1.3	0.4	4.9	5.8	9500	15000	8.3	9.6
14	20	12	15	0.4	1.3	0.4	6.3	8.1	9500	15000	10.1	11.3
14	20	14	15	0.4	1.3	0.4	7.7	10.5	9500	15000	12	13.2
14	20	16	15	0.4	1.3	0.4	9	12.8	9500	15000	13.9	15.2
14	20	18	15	0.4	1.3	0.4	10.2	15	9500	15000	15.6	16.9
14	20	20	15	0.4	1.3	0.4	11.5	17.2	9500	15000	17.5	18.7
14	22	12	16	0.4	1.3	0.4	7	7.2	9500	15000	13.2	14.5
14	22	14	16	0.4	1.3	0.4	8.8	9.6	9500	15000	15.7	17
14	22	16	16	0.4	1.3	0.4	10.5	12	9500	15000	18.1	19.4
14	22	18	16	0.4	1.3	0.4	12.2	14.2	9500	15000	20.5	21.8
14	22	20	16	0.4	1.3	0.4	13.5	16.8	9500	15000	23.1	24.4
15	21	10	16	0.4	1.3	0.4	5.1	6.2	9000	14000	8.7	10.2
15	21	12	16	0.4	1.3	0.4	6.6	8.7	9000	14000	10.7	12.1
15	21	14	16	0.4	1.3	0.4	8	11.2	9000	14000	12.7	14.1
15	21	16	16	0.4	1.3	0.4	9.4	13.8	9000	14000	14.5	16
15	21	18	16	0.4	1.3	0.4	10.8	16.2	9000	14000	16.5	18
15	21	20	16	0.4	1.3	0.4	12	18.5	9000	14000	18.5	20
15	23	12	17	0.4	1.3	0.4	7.5	7.9	9000	14000	13.9	15.4
15	23	14	17	0.4	1.3	0.4	9.4	10.5	9000	14000	16.6	18.1
15	23	16	17	0.4	1.3	0.4	11.2	13.2	9000	14000	19.3	20.8
15	23	18	17	0.4	1.3	0.4	12.8	15.8	9000	14000	21.8	23.3
15	23	20	17	0.4	1.3	0.4	14.5	18.5	9000	14000	24.4	25.9
16	22	10	17	0.4	1.3	0.4	5.3	6.6	8500	13000	9	10.6
16	22	12	17	0.4	1.3	0.4	6.8	9.3	8500	13000	11	12.6
16	22	14	17	0.4	1.3	0.4	8.3	12	8500	13000	13	14.7
16	22	16	17	0.4	1.3	0.4	9.7	14.5	8500	13000	15.1	16.7
16	22	18	17	0.4	1.3	0.4	11.2	17.2	8500	13000	17.2	18.8
16	22	20	17	0.4	1.3	0.4	12.5	20	8500	13000	19.2	20.9
16	24	12	18	0.8	1.3	0.8	7.5	8	8500	13000	14.1	15.8
16	24	14	18	0.8	1.3	0.8	9.4	10.8	8500	13000	17	18.6
16	24	16	18	0.8	1.3	0.8	11.2	13.2	8500	13000	19.6	21.3
16	24	18	18	0.8	1.3	0.8	12.8	16	8500	13000	22.3	24
16	24	20	18	0.8	1.3	0.8	14.5	18.8	8500	13000	24.9	26.6
17	23	10	18	0.4	1.3	0.4	5.5	7.1	8000	12000	9.3	11.2
17	23	12	18	0.4	1.3	0.4	7.1	9.9	8000	12000	11.5	13.4
17	23	14	18	0.4	1.3	0.4	8.6	12.8	8000	12000	13.7	15.6
17	23	16	18	0.4	1.3	0.4	10.2	15.5	8000	12000	15.9	17.7
17	23	18	18	0.4	1.3	0.4	11.5	18.5	8000	12000	18.1	19.9
17	23	20	18	0.4	1.3	0.4	13.5	22.5	8000	12000	20.8	22.4
17	25	12	19	0.8	1.3	0.8	7.9	8.8	8000	12000	14.9	16.8
17	25	14	19	0.8	1.3	0.8	9.9	11.8	8000	12000	17.8	19.7
17	25	16	19	0.8	1.3	0.8	11.8	14.5	8000	12000	20.7	22.6
17	25	18	19	0.8	1.3	0.8	13.5	17.5	8000	12000	23.5	25.4
17	25	20	19	0.8	1.3	0.8	15.2	20.5	8000	12000	26.4	28.3
18	24	10	19	0.4	1.3	0.4	5.6	7.5	7500	11000	9.9	12
18	24	12	19	0.4	1.3	0.4	7.3	10.5	7500	11000	12.1	14.2
18	24	14	19	0.4	1.3	0.4	8.9	13.5	7500	11000	14.5	16.5
18	24	16	19	0.4	1.3	0.4	10.5	16.5	7500	11000	16.7	18.8
18	24	18	19	0.4	1.3	0.4	12	19.5	7500	11000	19	21.1
18	24	20	19	0.4	1.3	0.4	13.2	22.5	7500	11000	21.2	23.3
18	26	12	20	0.8	1.3	0.8	8.3	9.5	7500	11000	15.7	17.9
18	26	14	20	0.8	1.3	0.8	10.5	12.8	7500	11000	18.8	20.9
18	26	16	20	0.8	1.3	0.8	12.5	15.8	7500	11000	21.8	23.9
18	26	18	20	0.8	1.3	0.8	14.2	19	7500	11000	24.8	26.9
18	26	20	20	0.8	1.3	0.8	16.2	22.2	7500	11000	27.8	30
20	26	10	21	0.4	1.3	0.4	6	8.4	7000	10000	10.8	13.3
20	26	12	21	0.4	1.3	0.4	7.8	11.8	7000	10000	13.3	15.8
20	26	14	21	0.4	1.3	0.4	9.5	15.2	7000	10000	15.7	18.3
20	26	16	21	0.4	1.3	0.4	11.2	18.5	7000	10000	18.2	20.8
20	26	18	21	0.4	1.3	0.4	12.5	21.8	7000	10000	20.8	23.3
20	26	20	21	0.4	1.3	0.4	14.2	25.2	7000	10000	23.3	25.8
20	28	12	22	0.8	1.3	0.8	8.7	10.2	7000	10000	17.1	19.7
20	28	14	22	0.8	1.3	0.8	11	13.8	7000	10000	20.3	22.9
20	28	16	22	0.8	1.3	0.8	13	17.2	7000	10000	23.6	26.2
20	28	18	22	0.8	1.3	0.8	15	20.8	7000	10000	26.8	29.4
20	28	20	22	0.8	1.3	0.8	16.8	24.2	7000	10000	30.2	32.8
22	28	10	23	0.4	1.3	0.4	6.3	9.3	6700	9500	11.7	14.8
22	28	12	23	0.4	1.3	0.4	8.2	13	6700	9500	14.4	17.5
22	28	14	23	0.4	1.3	0.4	10	16.8	6700	9500	17.2	20.2
22	28	16	23	0.4	1.3	0.4	11.8	20.5	6700	9500	19.9	22.9
22	28	18	23	0.4	1.3	0.4	13.2	24.2	6700	9500	22.5	25.6
22	28	20	23	0.4	1.3	0.4	15	27.8	6700	9500	25.3	28.4
22	30	12	24	0.8	1.3	0.8	9.1	11.2	6700	9500	18.4	21.5
22	30	14	24	0.8	1.3	0.8	11.2	15	6700	9500	21.9	25
22	30	16	24	0.8	1.3	0.8	13.5	18.5	6700	9500	25.3	28.4
22	30	18	24	0.8	1.3	0.8	15.5	22.2	6700	9500	28.9	32.1
22	30	20	24	0.8	1.3	0.8	17.5	26	6700	9500	32.4	35.6
25	32	12	27	0.8	1.3	0.8	9.1	13.2	6300	9000	18.3	22.2
26	32	14	27	0.8	1.3	0.8	11.5	17.5	6300	9000	21.9	25.9
27	32	16	27	0.8	1.3	0.8	13.5	22	6300	9000	25.2	29.2
28	32	18	27	0.8	1.3	0.8	15.5	26.5	6300	9000	28.8	32.8
29	32	20	27	0.8	1.3	0.8	17.5	30.8	6300	9000	32.3	36.3
30	32	24	27	0.8	1.3	0.8	21.2	39.5	6300	9000	39.3	43.2
31	35	14	28	0.8	1.6	0.8	12.2	14	6300	9000	29.9	34
32	35	16	28	0.8	1.6	0.8	15	18.2	6300	9000	35	39
33	35	18	28	0.8	1.6	0.8	17.5	22.5	6300	9000	40	44.1
34	35	20	28	0.8	1.6	0.8	20.2	26.8	6300	9000	44.9	49
35	35	24	28	0.8	1.6	0.8	25	35.2	6300	9000	54.8	58.9
28	35	12	30	0.8	1.3	0.8	9.5	14.5	6300	9000	20	24.9
28	35	14	30	0.8	1.3	0.8	12	19.5	6300	9000	24	29
28	35	16	30	0.8	1.3	0.8	14.2	24.2	6300	9000	27.6	32.6
28	35	18	30	0.8	1.3	0.8	16.2	29.2	6300	9000	31.7	36.6
28	35	20	30	0.8	1.3	0.8	18.5	34	6300	9000	35.5	40.5
28	35	24	30	0.8	1.3	0.8	22.5	43.5	6300	9000	43.2	48.1
28	38	14	31	0.8	1.6	0.8	13.2	16.2	6300	9000	33.2	38.3
28	38	16	31	0.8	1.6	0.8	16.5	21.2	6300	9000	38.8	43.9
28	38	18	31	0.8	1.6	0.8	19.2	26.2	6300	9000	44.4	49.5
28	38	20	31	0.8	1.6	0.8	22.2	31	6300	9000	49.8	54.9
28	38	24	31	0.8	1.6	0.8	27.5	41	6300	9000	60.8	65.8
30	37	12	32	0.8	1.3	0.8	10	15.8	5600	8000	21.4	27.1
30	37	14	32	0.8	1.3	0.8	12.5	21.2	5600	8000	25.5	31.2
30	37	16	32	0.8	1.3	0.8	15	26.5	5600	8000	29.6	35.3
30	37	18	32	0.8	1.3	0.8	17.2	31.8	5600	8000	33.6	39.3
30	37	20	32	0.8	1.3	0.8	19.2	37	5600	8000	37.9	43.6
30	37	24	32	0.8	1.3	0.8	23.5	47.5	5600	8000	46	51.7
30	40	14	33	0.8	1.6	0.8	13.8	17.5	5600	8000	35.2	41
30	40	16	33	0.8	1.6	0.8	17	22.8	5600	8000	41.1	46.9
30	40	18	33	0.8	1.6	0.8	20.2	28	5600	8000	47	52.8
30	40	20	33	0.8	1.6	0.8	23	33.2	5600	8000	52.8	58.6
30	40	24	33	0.8	1.6	0.8	28.5	43.8	5600	8000	64.4	70.2
32	39	12	34	0.8	1.3	0.8	10.5	17.2	5300	7500	22.7	29.2
32	39	14	34	0.8	1.3	0.8	13.2	23	5300	7500	27.2	33.7
32	39	16	34	0.8	1.3	0.8	15.5	28.5	5300	7500	31.3	37.8
32	39	18	34	0.8	1.3	0.8	18	34.2	5300	7500	35.8	42.3
32	39	20	34	0.8	1.3	0.8	20.2	40	5300	7500	40.4	46.8
32	39	24	34	0.8	1.3	0.8	24.5	51.5	5300	7500	49	55.5
32	42	14	35	0.8	1.6	0.8	14.5	18.5	5300	7500	37.2	43.7
32	42	16	35	0.8	1.6	0.8	17.8	24.2	5300	7500	43.5	50.1
32	42	18	35	0.8	1.6	0.8	20.8	29.8	5300	7500	49.7	56.3
32	42	20	35	0.8	1.6	0.8	23.8	35.5	5300	7500	55.8	62.4
32	42	24	35	0.8	1.6	0.8	29.5	46.8	5300	7500	68.1	74.7
35	42	12	37	0.8	1.3	0.8	10.8	18.5	5000	7000	24.5	32.3
35	42	14	37	0.8	1.3	0.8	13.5	24.5	5000	7000	29.3	37.1
35	42	16	37	0.8	1.3	0.8	16.2	30.8	5000	7000	33.9	41.6
35	42	18	37	0.8	1.3	0.8	18.5	37	5000	7000	38.7	46.4
35	42	20	37	0.8	1.3	0.8	21	43.2	5000	7000	43.5	51.2
35	42	24	37	0.8	1.3	0.8	25.5	55.5	5000	7000	52.8	60.5
35	45	14	38	0.8	1.6	0.8	14.8	19.8	5000	7000	39.8	47.6
35	45	16	38	0.8	1.6	0.8	18.2	25.8	5000	7000	46.5	54.4
35	45	18	38	0.8	1.6	0.8	21.5	31.8	5000	7000	53.2	61
35	45	20	38	0.8	1.6	0.8	24.5	37.8	5000	7000	59.8	67.7
35	45	24	38	0.8	1.6	0.8	30.2	49.8	5000	7000	72.9	80.8
38	45	12	40	0.8	1.3	0.8	11.2	19.8	4500	6300	26.4	35.4
38	45	14	40	0.8	1.3	0.8	14	26.5	4500	6300	31.5	40.6
38	45	16	40	0.8	1.3	0.8	16.8	33	4500	6300	36.4	45.4
38	45	18	40	0.8	1.3	0.8	19.2	39.5	4500	6300	41.5	50.6
38	45	20	40	0.8	1.3	0.8	21.8	46.2	4500	6300	46.7	55.7
38	45	24	40	0.8	1.3	0.8	26.2	59.5	4500	6300	56.7	65.8
38	48	14	41	0.8	1.6	0.8	15.8	22.2	4500	6300	43.1	52.3
38	48	16	41	0.8	1.6	0.8	19.5	28.8	4500	6300	50.4	59.6
38	48	18	41	0.8	1.6	0.8	22.8	35.5	4500	6300	57.6	66.8
38	48	20	41	0.8	1.6	0.8	26.2	42.2	4500	6300	64.7	73.9
38	48	24	41	0.8	1.6	0.8	32.2	55.5	4500	6300	78.9	88.1
40	47	12	42	0.8	1.3	0.8	11.5	21.2	4500	6300	37.6	37.7
40	47	14	42	0.8	1.3	0.8	14.5	28.2	4500	6300	33.1	43.1
40	47	16	42	0.8	1.3	0.8	17.2	35.2	4500	6300	38.1	48.2
40	47	18	42	0.8	1.3	0.8	20	42.2	4500	6300	43.7	53.7
40	47	20	42	0.8	1.3	0.8	22.5	49.2	4500	6300	49	59.1
40	47	24	42	0.8	1.3	0.8	27.2	63.5	4500	6300	59.6	69.7
40	50	14	43	0.8	1.6	0.8	16.2	23.2	4500	6300	45.1	55.2
40	50	16	43	0.8	1.6	0.8	20	30.2	4500	6300	52.7	62.8
40	50	18	43	0.8	1.6	0.8	23.5	37.2	4500	6300	60.3	70.4
40	50	20	43	0.8	1.6	0.8	26.8	44.5	4500	6300	67.7	77.8
40	50	24	43	0.8	1.6	0.8	33.2	58.5	4500	6300	82.7	92.8
42	49	12	44	0.8	1.3	0.8	12	22.5	4300	6000	29	40.1
42	49	14	44	0.8	1.3	0.8	15	30	4300	6000	34.7	45.7
42	49	16	44	0.8	1.3	0.8	18	37.5	4300	6000	40.1	51.2
42	49	18	44	0.8	1.3	0.8	20.5	45	4300	6000	45.8	56.8
42	49	20	44	0.8	1.3	0.8	23.2	52.2	4300	6000	51.4	62.5
42	49	24	44	0.8	1.3	0.8	28.2	67.2	4300	6000	62.5	73.6
42	52	14	46	0.8	1.6	0.8	16.5	24.5	4300	6000	47	58.2
42	52	16	46	0.8	1.6	0.8	20.5	31.8	4300	6000	54.9	66.1
42	52	18	46	0.8	1.6	0.8	24	39.2	4300	6000	62.9	74.1
42	52	20	46	0.8	1.6	0.8	27.5	46.5	4300	6000	70.6	81.8
42	52	24	46	0.8	1.6	0.8	34.2	61.5	4300	6000	86.2	97.4
45	52	12	47	0.8	1.3	0.8	12.2	23.8	3800	5300	30.8	43.5
45	52	14	47	0.8	1.3	0.8	15.5	31.8	3800	5300	36.8	49.5
45	52	16	47	0.8	1.3	0.8	18.5	39.5	3800	5300	42.5	55.2
45	52	18	47	0.8	1.3	0.8	21.2	47.5	3800	5300	48.6	61.3
45	52	20	47	0.8	1.3	0.8	24	55.5	3800	5300	54.7	67.4
45	52	24	47	0.8	1.3	0.8	29	71.2	3800	5300	66.4	79.1
45	55	14	49	0.8	1.6	0.8	17	25.5	3800	5300	49.6	62.5
45	55	16	49	0.8	1.6	0.8	20.8	33.5	3800	5300	58.1	70.9
45	55	18	49	0.8	1.6	0.8	24.5	41.2	3800	5300	66.4	79.3
45	55	20	49	0.8	1.6	0.8	28.2	50	3800	5300	74.6	87.4
45	55	24	49	0.8	1.6	0.8	34.8	64.5	3800	5300	91.1	104
50	58	16	53	0.8	1.6	0.8	21.2	43.5	3400	4800	52.7	68.4
50	58	18	53	0.8	1.6	0.8	24.5	52.2	3400	4800	60	75.6
50	58	20	53	0.8	1.6	0.8	27.8	61	3400	4800	67.3	82.9
50	58	24	53	0.8	1.6	0.8	33.8	78.5	3400	4800	82.3	97.9
55	63	16	58	0.8	1.6	0.8	22.2	47.5	3200	4500	57.3	76.2
55	63	18	58	0.8	1.6	0.8	25.8	57.2	3200	4500	65.3	84.2
55	63	20	58	0.8	1.6	0.8	29	66.5	3200	4500	73.3	92.2
55	63	24	58	0.8	1.6	0.8	35.2	85.5	3200	4500	89.6	109
60	68	16	63	0.8	1.6	0.8	23.5	52.8	2800	4000	62.4	84.9
61	68	18	63	0.8	1.6	0.8	27.2	63.5	2800	4000	71.1	93.6
60	68	20	63	0.8	1.6	0.8	30.5	74	2800	4000	79.8	102
60	68	24	63	0.8	1.6	0.8	37.2	95	2800	4000	97.6	120
65	73	16	68	0.8	1.6	0.8	24.5	56.8	2800	4000	67.1	93.5
65	73	18	68	0.8	1.6	0.8	28.2	68.2	2800	4000	76.5	103
65	73	20	68	0.8	1.6	0.8	31.8	79.5	2800	4000	85.8	112
65	73	24	68	0.8	1.6	0.8	38.6	102	2800	4000	105	131
70	78	16	73	0.8	1.6	0.8	25.2	60.8	2600	3800	71.8	102
70	78	18	73	0.8	1.6	0.8	29.2	73	2600	3800	81.8	112
70	78	20	73	0.8	1.6	0.8	32.8	85.2	2600	3800	91.9	122
70	78	24	73	0.8	1.6	0.8	40	110	2600	3800	112	143

<- 上一项下一项 ->
